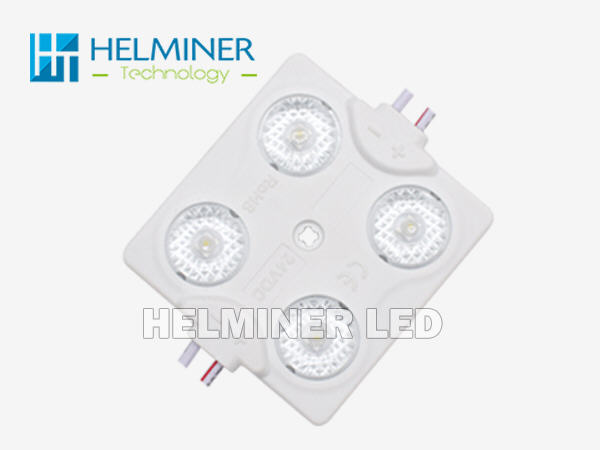

175° PRISM LED module
Specification
| Model | HM-C05 / 4LED |
| Voltage | 24v DC |
| 4 LED | 2w 240 LM /pcs |
| Color | White / OEM |
| Waterproof | IP65 PVC injection Waterproof |
| Warranty | 5 Years warranty. MOQ 5000pcs |
175°lens Signage LED illuminated - Crown Opto S4 / 2022 Nova LED Module Designed By Helminer LED
-
Application
- Channel letter signs and single-sided lightboxes
- Recommended depth 120-300 mm
Direct China LED Module Manufacturer. Best Wholesale Price. Fast Shipping, Same quality of the Balt LED Module
- Crown OPTO S4 LED Module – a great option for middle-range depth projects when economical, although a quality solution is needed
- Crown OPTO 4 modules are designed for big channel letters and one-sided lightboxes ranging from 120 to 300 mm in depth. These modules can be installed with a 350 mm step.

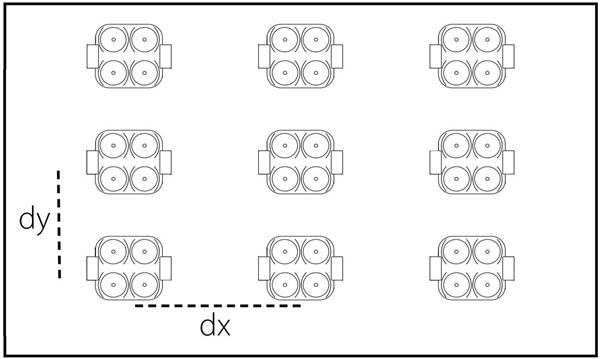

| Light Box Depth (mm) |
Space betweenmodules (mm) |
Installing density (pcs/m2) |
Surface luminance range (cd/m2) |
|---|---|---|---|
| Dz 130 | Dx 200, Dy 150 | 30 | 4000 |
Note:
Results may vary depending on face material properties. The data above was obtained using 3mm
thick opaque acrylic with a 54% light transmittance. Helminer advises to paint the inside of the box/
letters in a matt white colour for achieving an optimal result. Always test before production.

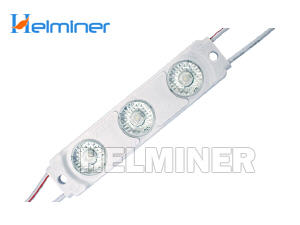

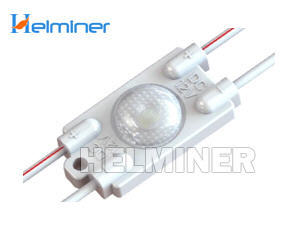

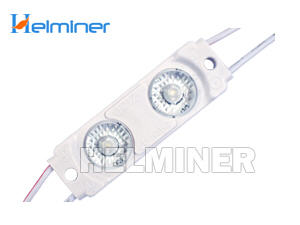

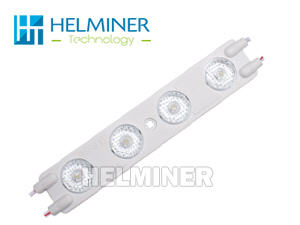

This series LED Module also have another option :
