Korean LG ABS + PMMA Lens

 Modulo LED a 2 diodi, Modulo LED a 3 diodi,  LED per insegne

Specification

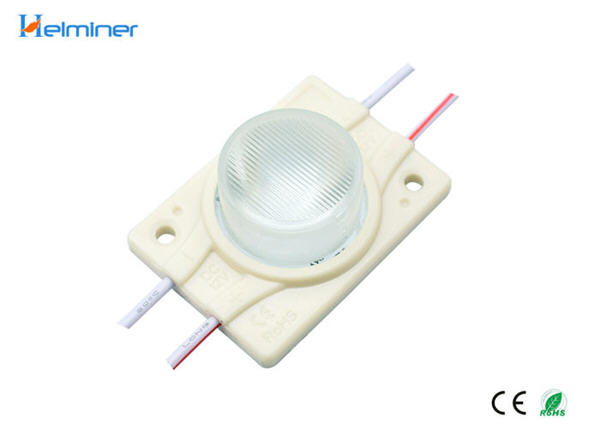

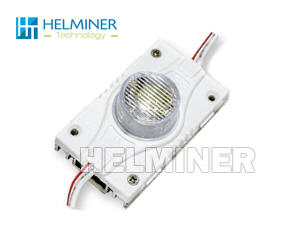

Model HM-D01/A
Voltage 12v DC
Drive Constant current | voltage drive
Epistar 3030 LED 1.44W(1.5W) 145LM/pcs
PMMA lens 65*10°
Epistar EMC 3030 LED 2W 185LM/pcs
PMMA lens 60*15°
Color 6500K-7000K White Color | OEM Yes (3000K, 4000K)
Feature 1.6mm Aluminum PCB + Korean LG ABS fire-proof Material + CE RoHS
Warranty 5 Years warranty. MOQ 3000pcs
Detail Information
Korean LG ABS material + Epistar Big Chips + 65*10° PMMA lens + Constant current drive

Features :
 Zur Hinterleuchtung und für die Lichtwerbung: Neu konzipierte BackLED- und BoxLED

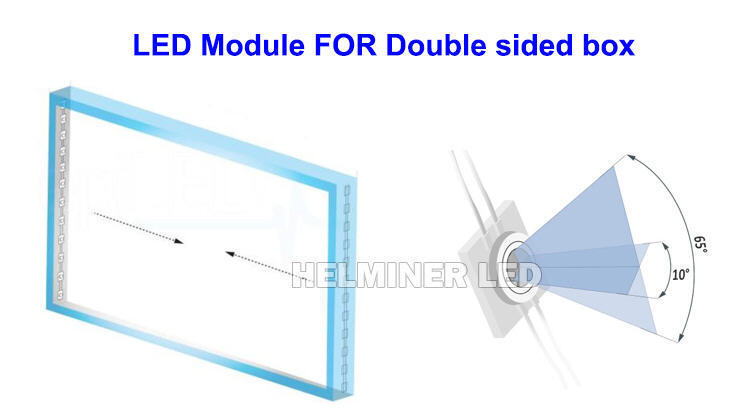

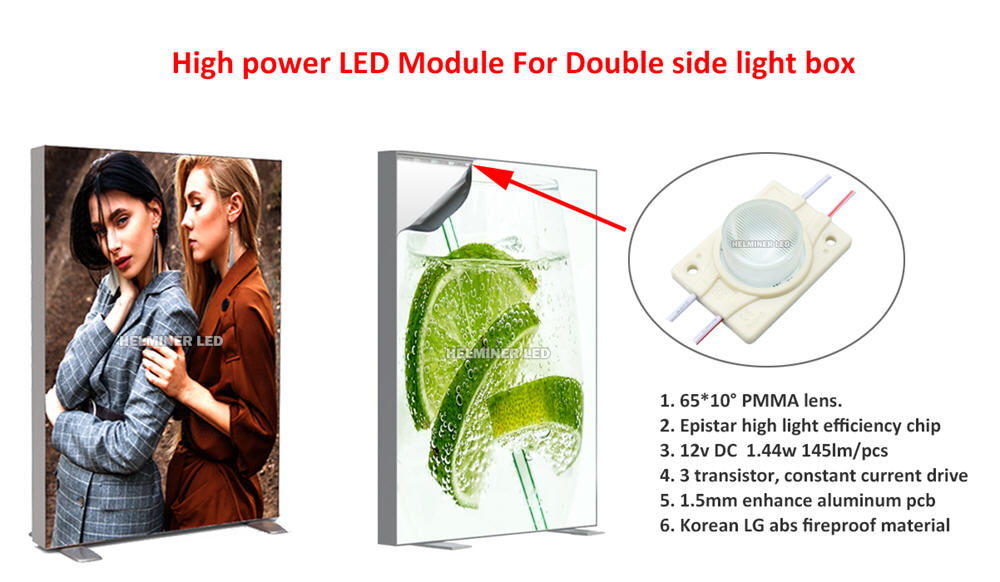

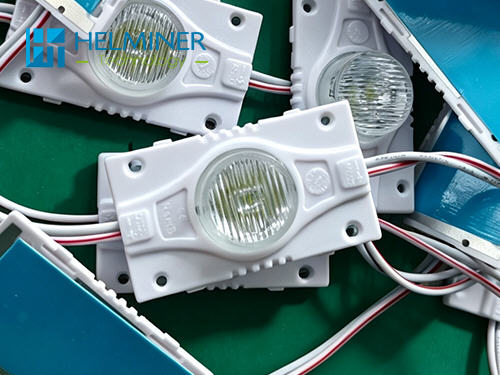

1.44w 1.5w 65*10° 145LM/pcs IP67 12v LED Module For Double Side Light Box Side Lighting

EPISTAR SMD3030 Big Chip, Contant current drive design, Enhance aluminum pcb.

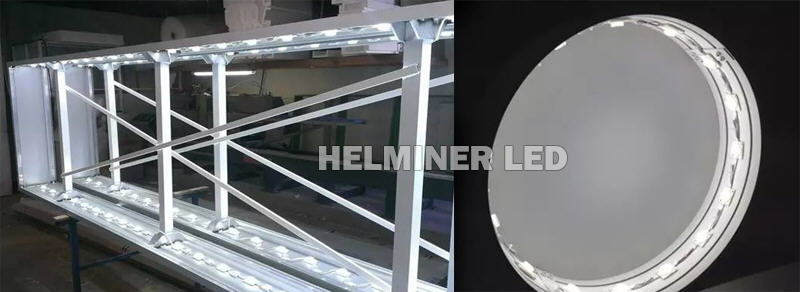

Suitable for 80-150cm double sided light box side lighting.
Drive : Constant current drive, more stable, make sure the best consistent .
The light source adopts Epistar high light efficiency, no spot, low light decay and good consistency.
Low power consumption, high brightness, long service life and maintenance-free.


LED Licht+Werbung ,LED-Panels | LED-Lichttechnik-Werbung

LED-Lichtwerbung, LED-Leuchtreklame & LED-Licht- und ...

Features :
  • Powered by Epistar / OSRAM / LUMILEDS high light efficiency big chip
  • Driven by constant current : 3 transistor
  • Durable KOREAN LG ABS fireproof material
  • With double-sided adhesive and screw two installation methods.

  LED Modulkette , 1.5w led module,Licht für Buchstaben - Helminer : LED-Technologie, Neon ...

 12v LED Modulketten , LED Modul Ketten günstig kaufen

This series Edge LED Module also have another option , for Various Double Light Box

High Power Back-Lit series LED Module , Special design for Single Face Light Box

LED illumination solutions for signage

Main LEDs


 edge led module,side led module, led for cabinet, led for light box
Special for Double Light Box

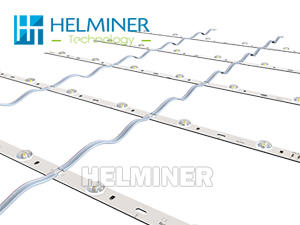

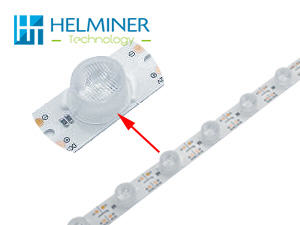

Edge LED Module

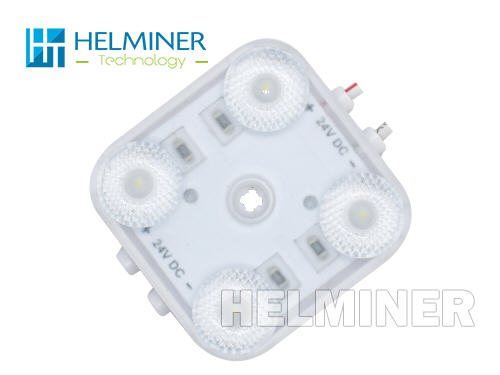

1led module, 2led module, 3led module, 4led module, nova led module, prism led module

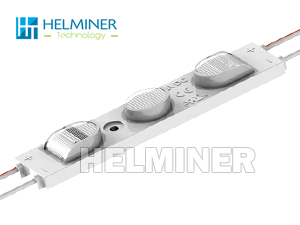

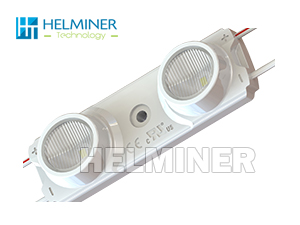

Regular 2/3LED Module,Mini...
