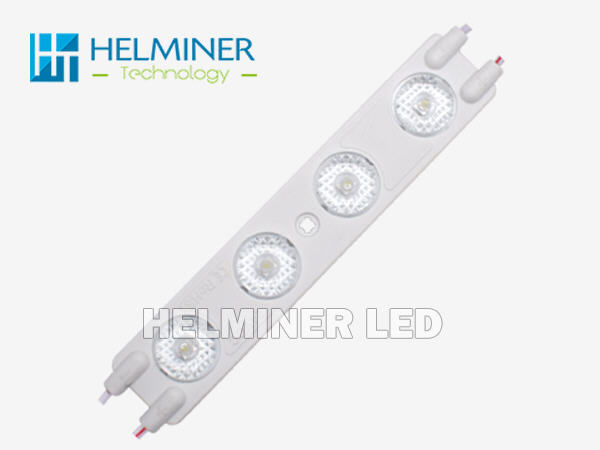

175° PRISM LED module
Specification
| Model | HM-C05 / 4LED(R) |
| Voltage | 24v DC |
| 4 LED | 2w 120lm/w |
| Color | White / OEM |
| Waterproof | IP67 PVC injection Waterproof |
| Warranty | 5 Years warranty. MOQ 5000pcs |
-
Application
- Medium to bigger size channel letters
- Recommended depth 120-300 mm

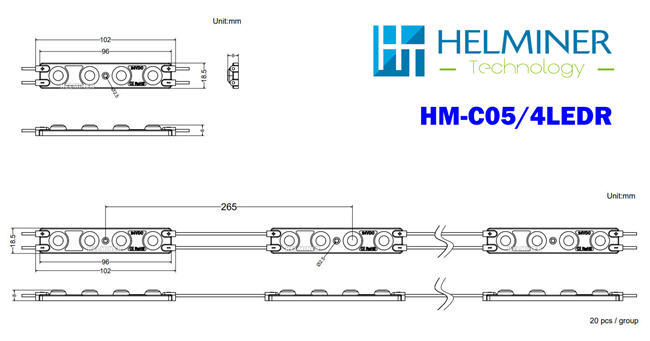

- 260 mm distance between centers of modules
24V gives the ability to increase the number of LED modules in the chain without drop of the effectiveness and power. To make the installation work easy and fast, these modules come with the adhesive and screw hole for convenient removal of the protective layer
Crown OPTO S4+ is a new solution for uniform illumination of medium to bigger size channel letters with depth ranging from 120 to 300 mm. Light in the applications distributed more evenly, due to the new optics, we have used in this design. Because of that, LED modules can have longer wires and be installed with a 260 mm step
This series LED Module also have another option :
Thanks for your interesting, this page still in updating..., More informaiton Please contact our sale manager at any time.
- 160LM/W LED Module , High Light Efficiency LED Module
- Edge LED Module
- Bat-wing LED Module
- Classic 6x12 NEON LED
