Lumileds LED modules for advertising

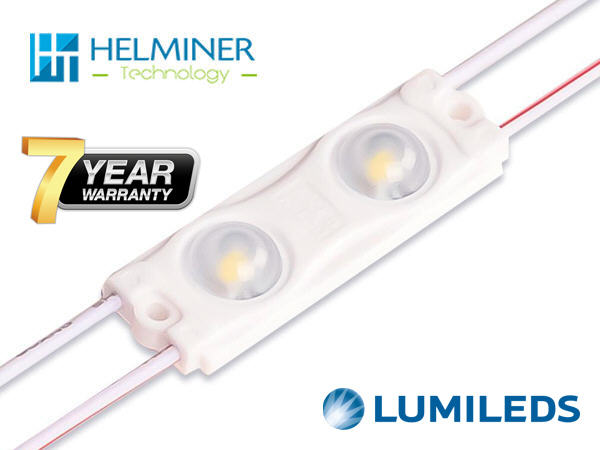

24V 0.48W 2LED Module, LED Module für Lichtwerbung, Leuchtbuchstaben etc.

Specification

Model HM-A07/ 2LED
Voltage 24V DC / 12V DC
LED Qty 2 LED/pcs
LM / Power 120LM /w 0.72w /pcs
Color 6500K / Red / Green / Blue
Waterproof IP67 ABS injection Waterproof
Warranty 5 Years warranty.
5000pcs
Price *
Lumileds LED Modules
Updated Again , 120 LM /W ( Regular is 105 LM /W ) | Save 25% LED Power dissipation

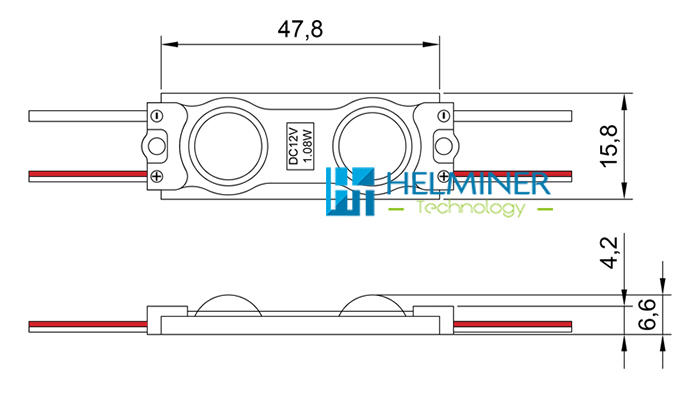

Product Dimension

Specifications

TECHNICAL INFORMATION

  1. Deluxe option, LED by lumileds 2835
  2. Aluminum PCB board , good heat dissipation
  3. 120 LM /W , high light efficiency
  4. 5 years warranty

LIGHT DISTRIBUTION GRAPH

LED Module für Lichtwerbung, Leuchtbuchstaben etc.

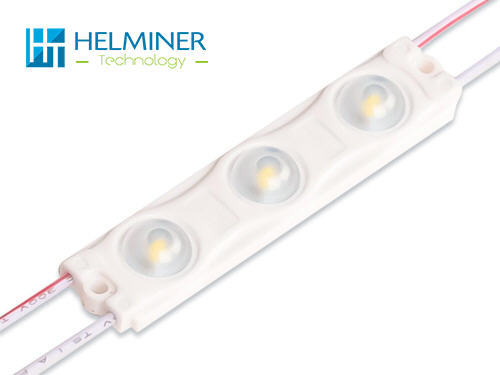

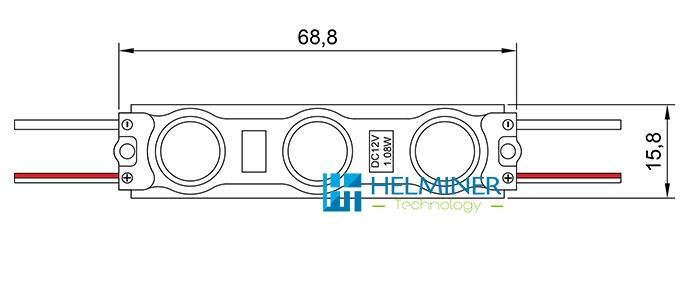

There also have 3 LED can be chosen
