Micro LED module for mini sign
Specification
| Model | HM-A01/B |
| Voltage | 12V DC |
| LED Qty | 1 LED/pcs |
| LM / Power | 12V 0.24W 40 LM |
| View Angle | 150° |
| Color | 6500K / 4000k / 3000k | OEM Yes |
| Waterproof | IP65 ABS injection Waterproof |
| Warranty | 5 Years warranty. MOQ 5000pcs |
| Price |
0.12
Promotion
|
Small MINI LED Module is best for the uniform illumination of shallow depth narrow channel letters.
These modules are designed to fit in backlit and halo-lit applications with depths as low as 20 mm and widths as narrow as 8 mm.

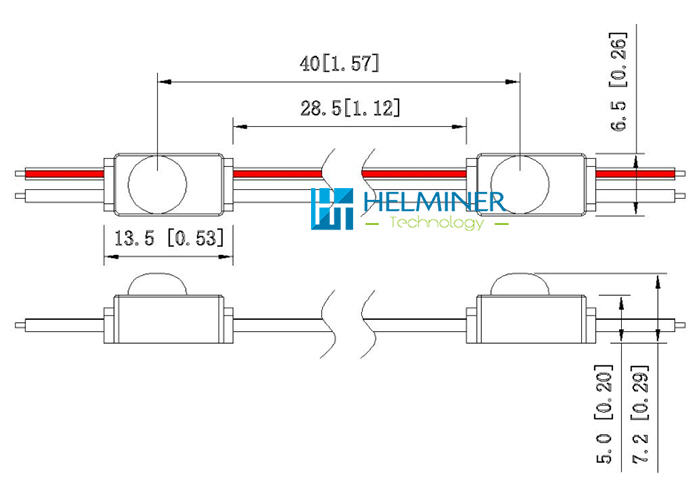

Great illumination uniformity can be achieved with 40 mm distance between modules and flexible silicone insulation wires allowing easy installation.
- Shallow depth narrow channel letter
- Extremely small size
mini LED modules are designed to fit into Light Boxes and Channel Letters from 3-6 cm deep at subways, airports, shopping malls, etc

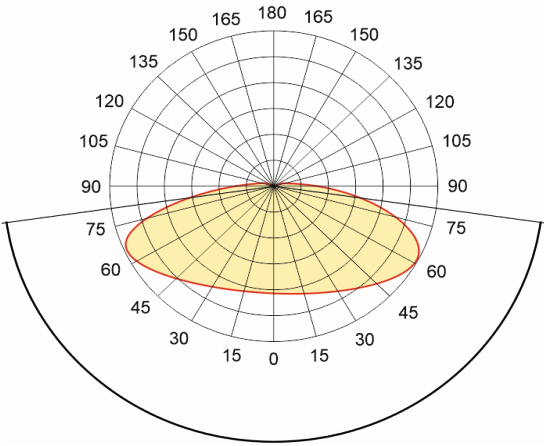

LIGHT DISTRIBUTION GRAPH
