Basic LED Wall Sample Installation
April, 2025 by Frank
Back Structure

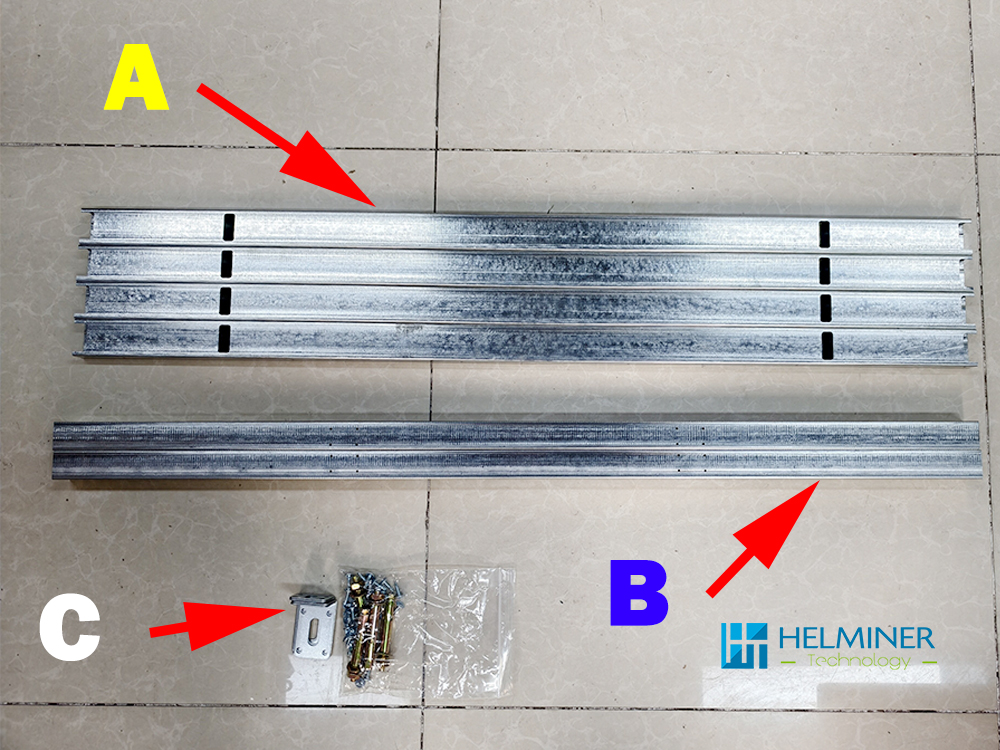

Basic Learning Sample Box Structure
A : 40 x 20 mm Galvanized Iron . LED Module Support structure
B : 30 x 30 mm Galvanized Iron . MAIN Support structure
C : Fix Structure

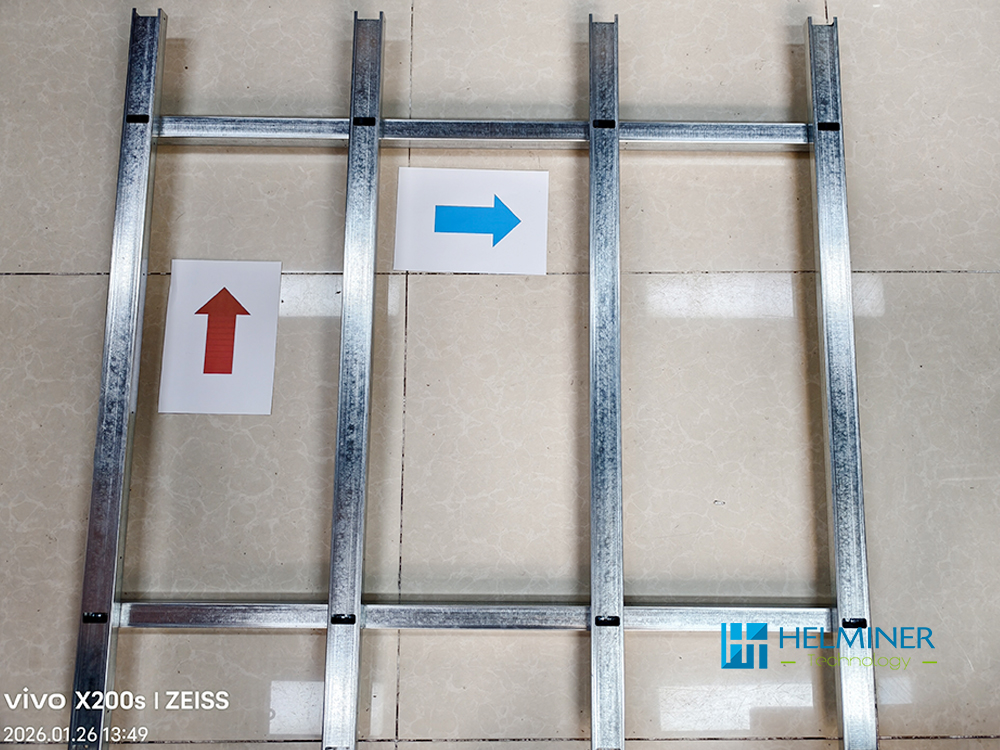

This is what it looks like after assembly.
Assembly details

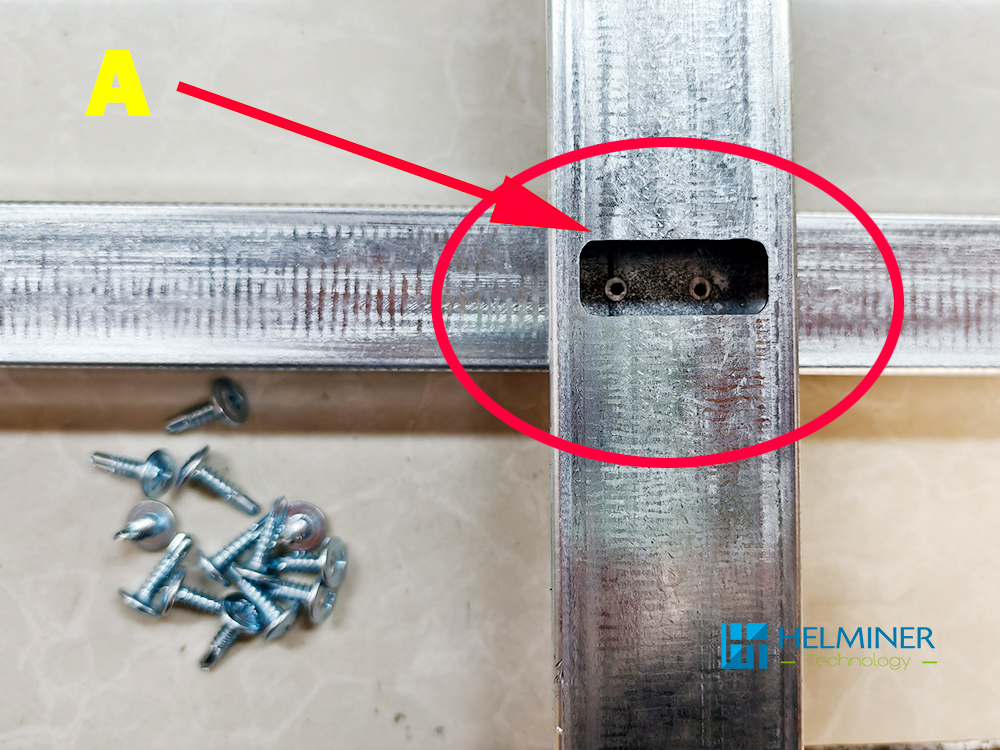

Two screw holes are placed in each group, for a total of four groups of screw holes. This side is facing upwards.

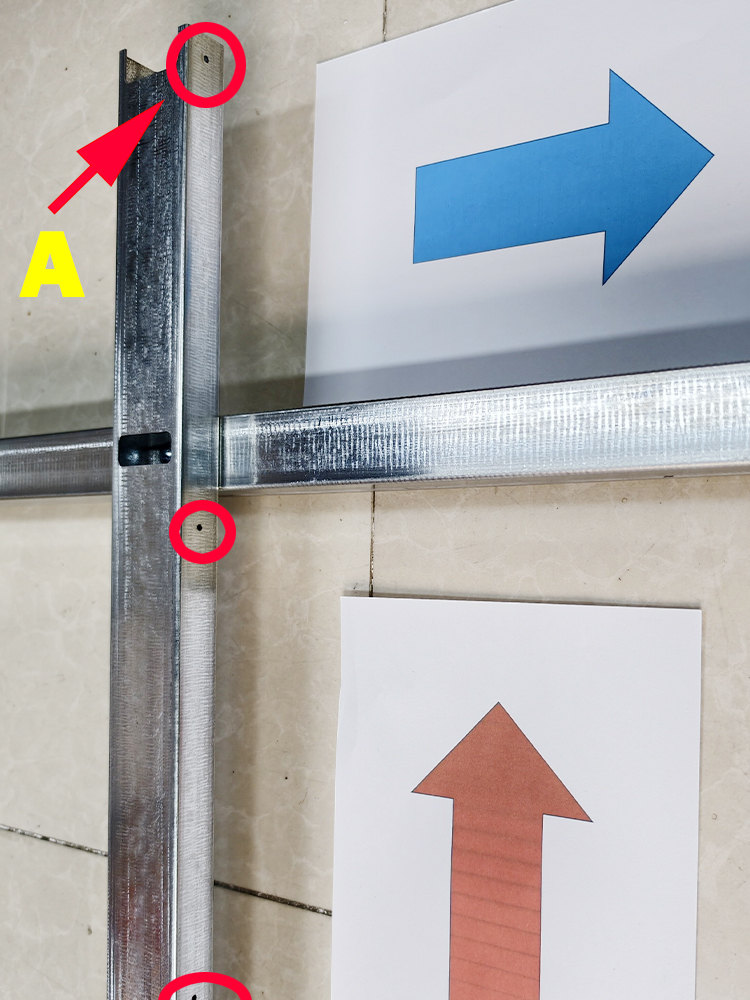

A : The side with the screw hole faces right.

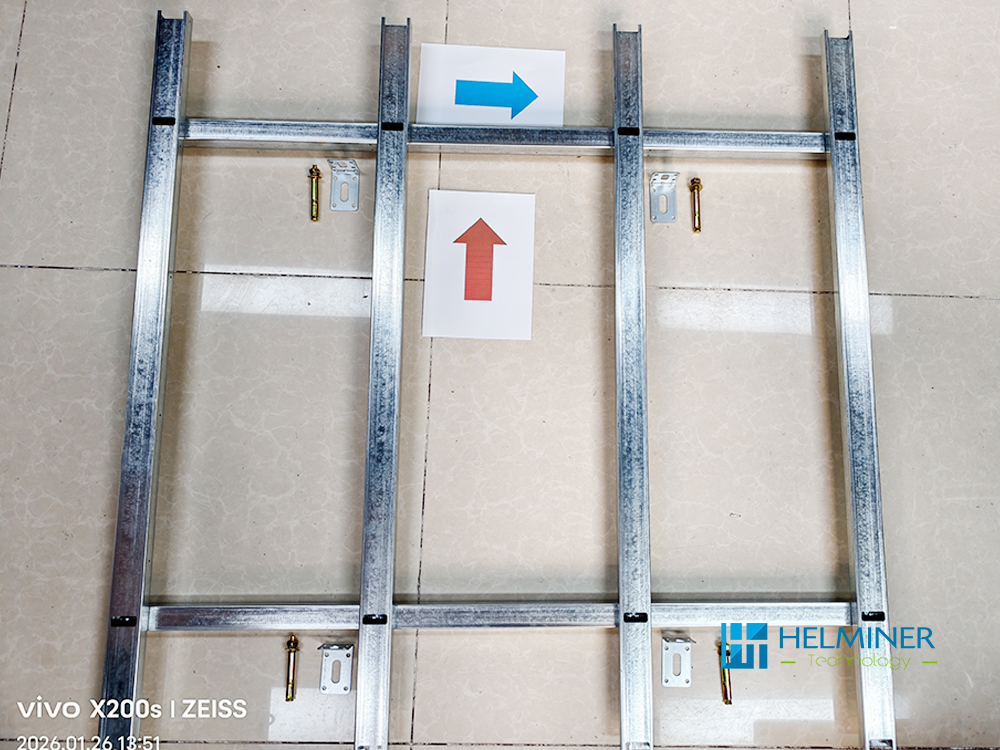

Fix it to the wall,

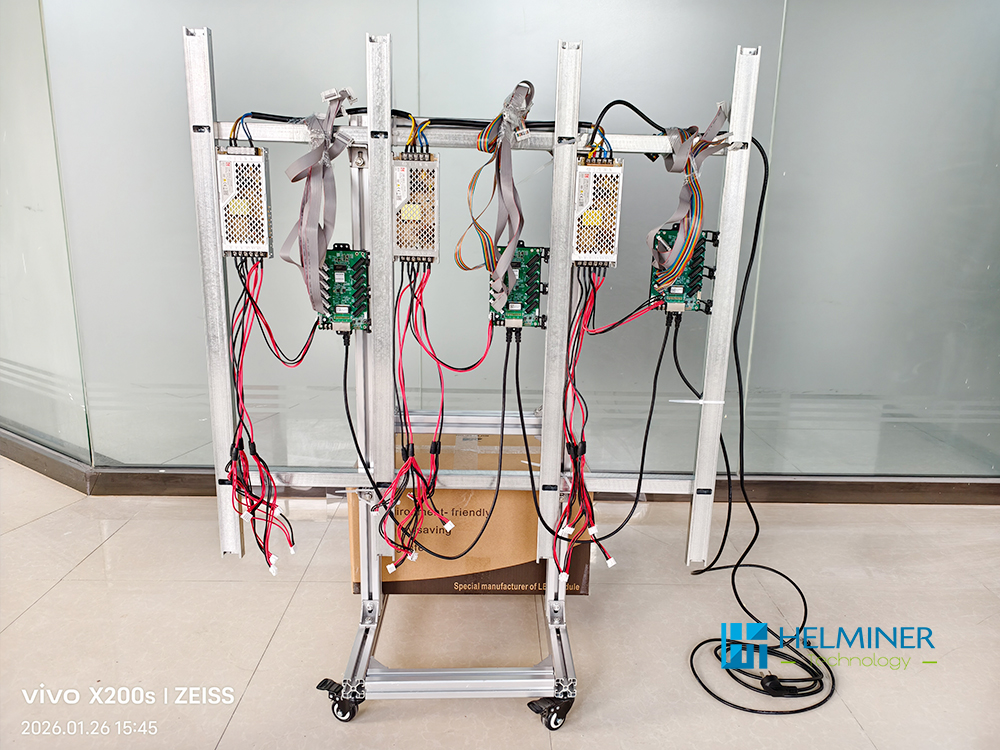

or use a simple bracket to support the structure :

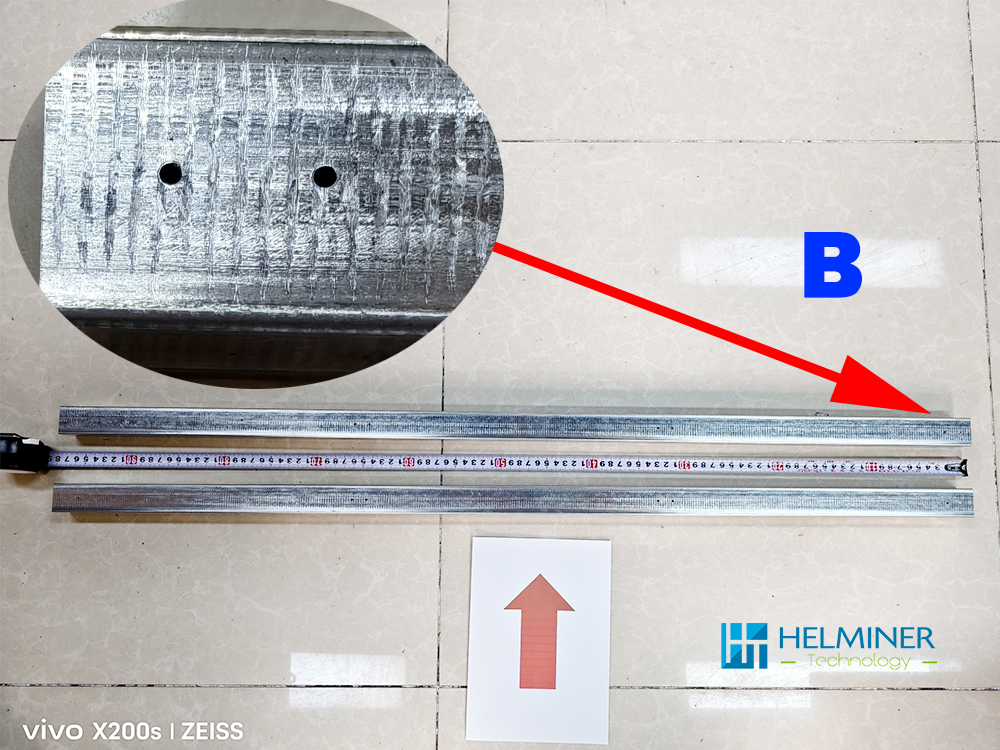

Part of B : Main Supporting area .
More Information, you can check this video :
( If you cannot view it, you need to add it as a friend first. )
Facebook - Assemble the structure
