175° lens + Constant current drive
Specification
| Model | HM-C03 |
| Voltage | 12v DC |
| HM-C03/B |
Power by OSRAM 2LED 1W 110LM |
| HM-C03/C |
Power by OSRAM 3LED 1.44w 160LM |
| Waterproof | IP67 Korean LG ABS Fire-proof material |
| Warranty | 5 Years warranty. MOQ 5000pcs |
2020 Brand new design PMMA lens. Big 175° Lens. Popular LED MODULE In European Market !
- Drive : constant current drive , more stable .
- LG ABS : Korean LG fireproof abs material, top quality .
- OSRAM LED : LED provided by OSRAM , 1w 2835 high power led chip .
- 1.6mm pcb : 1.6mm double side PCB

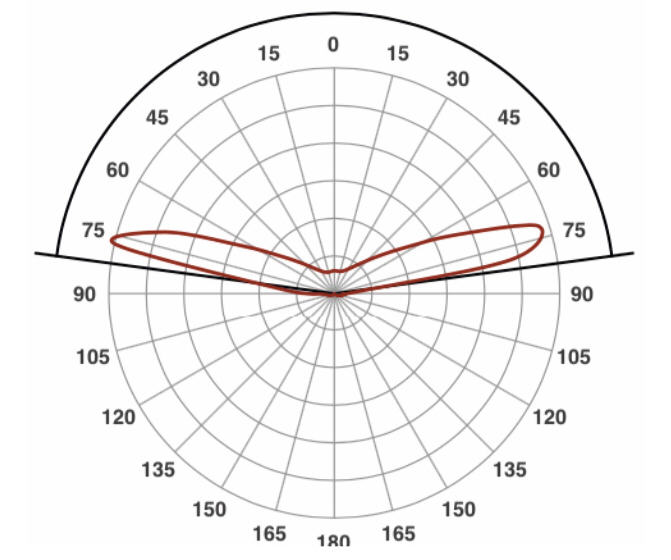

- 175° ： 175° PMMA Lens
- 18AWG power wires
Test : 9pcs/square ( 80cm * 80cm * 10cm light box )
Minimum quantity : 16pcs / square ( 10cmm light box )
Power by OSRAM. 6 Years warranty . Top quality + 175° new design PMMA lens + Constant current drive
Real 1.6mm thickness double layer FR4 ---2 Oz Cooper : Good conductivity of heat and electricity !
( 3LED PCB Board : Constant current drive + More stable )
High Power Edge LED Module | Side LED Module . Use for Double side light box side lighting.
