170° High Power LED Sign Modules
DC12V Epistar 2835 high power SMD chip super brightness IP67 waterproof - New design LED sign lighting modules
| Model | LED Type | LED Qty | Emit Angle | Color | Voltage | Power (pcs) |
Dimension (mm) |
Package (group) |
| HM-E03(B) | SMD2835 | 2LED | 170° | White | DC12V | 1w | 42*18.5 | 20pcs |
| HM-E03(C) | 3LED | 1.5w | 72*18.5 | |||||
| HM-E03(D) | 4LED | 2w | 42*42 |
warranty : 4 years
waterproof :IP67 abs injection
brightness : 95 / 145 / 190 LM
Epistar High Power chips : super brightness , low light degradation .
170° big emitting lens : better light efficiency .
3M backtape : easy to install and each led can be cut .
IP67 waterproof : abs whole injection waterproof, special design for the outdoor use .
Enhance power wires : more stable, long life time.
OEM Yes : Customize your company logo on the product .
Package : 20pcs/group, each led can be cut.
Dimension : 2 LED 2835 LED Modules

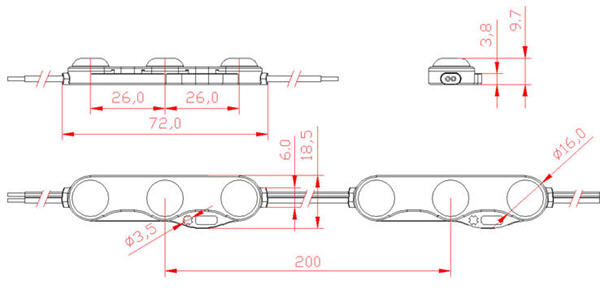

Dimension : 3 LED 2835 LED Modules

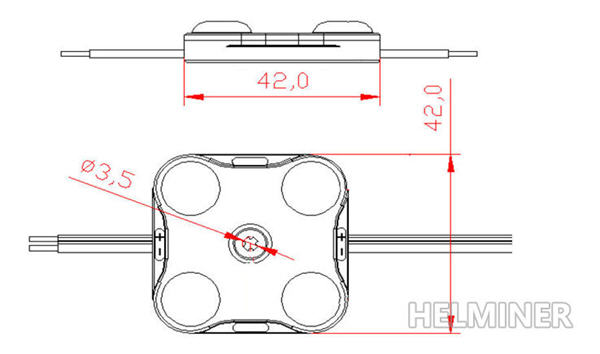

Dimension : 4 LED 2835 LED Modules
This 2835 LED Module is top selling in the past year,
epistar high power chips with super brightness,
170° big emitting angle with best luminous efficiency,
2LED , 3LED , 4LED can be chosen, direct factory best price !
Attract your clients right now !
