This document is intended to help our clients understand and use the product. For accuracy and rellability, We may make improvements and/or changes to this document at any time and without notice.

If you experience any problems in use , please email our sale manager at any time . Email : led.hgy@gmail.com

What's in the sample box

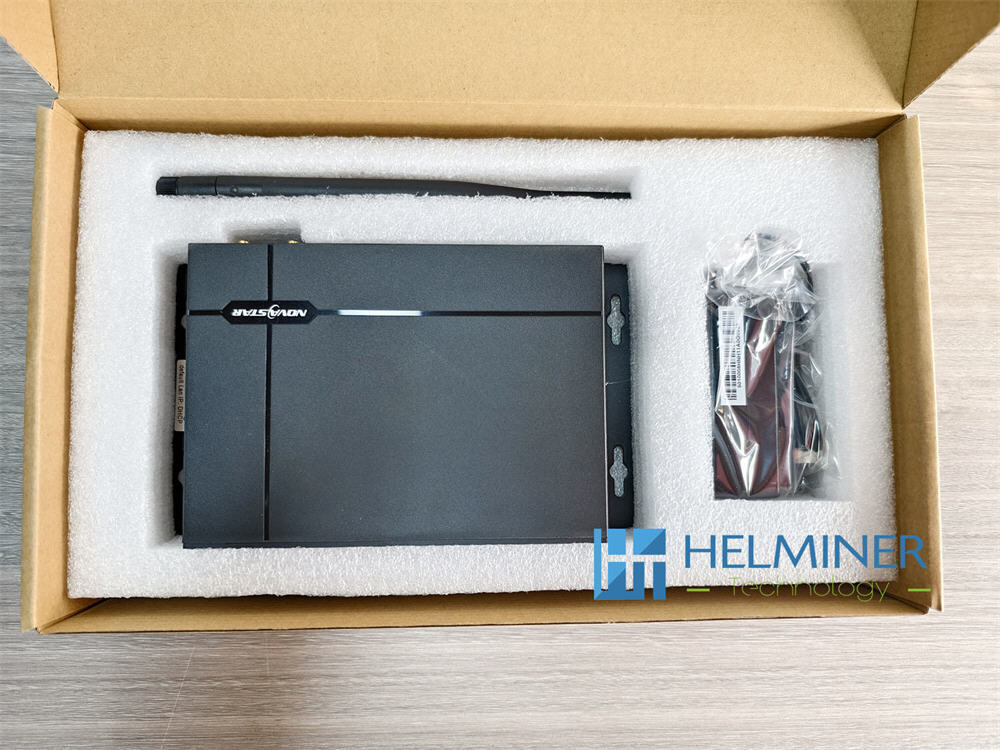

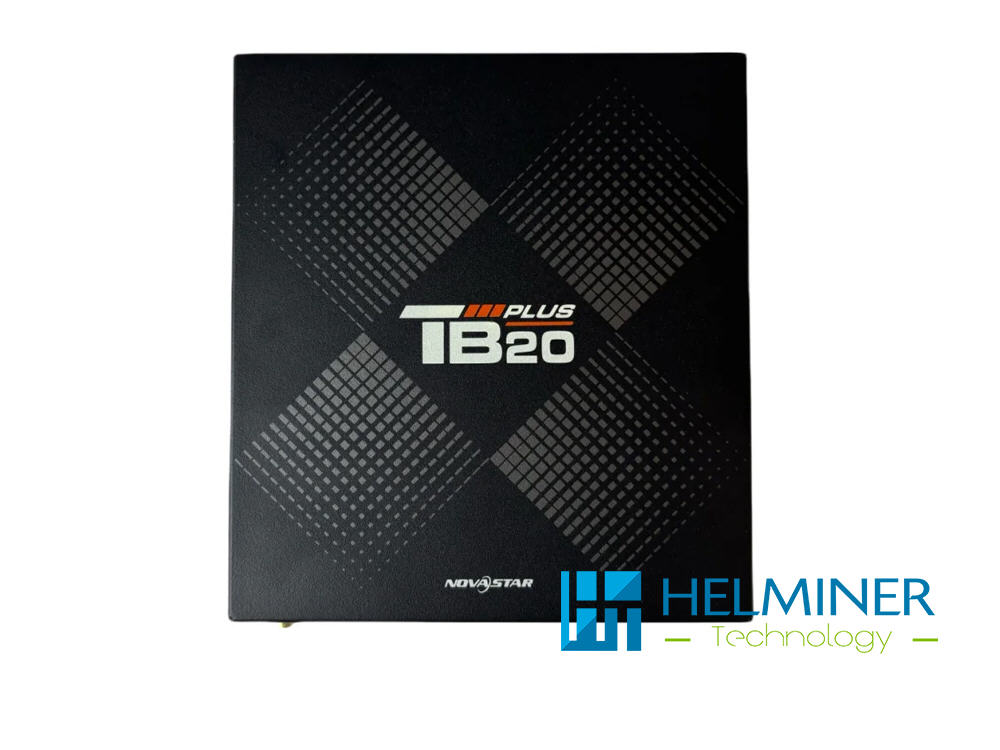

TB20 PLUS LED WALL Controller
1pcs led wall sample box controller TB20 Plus

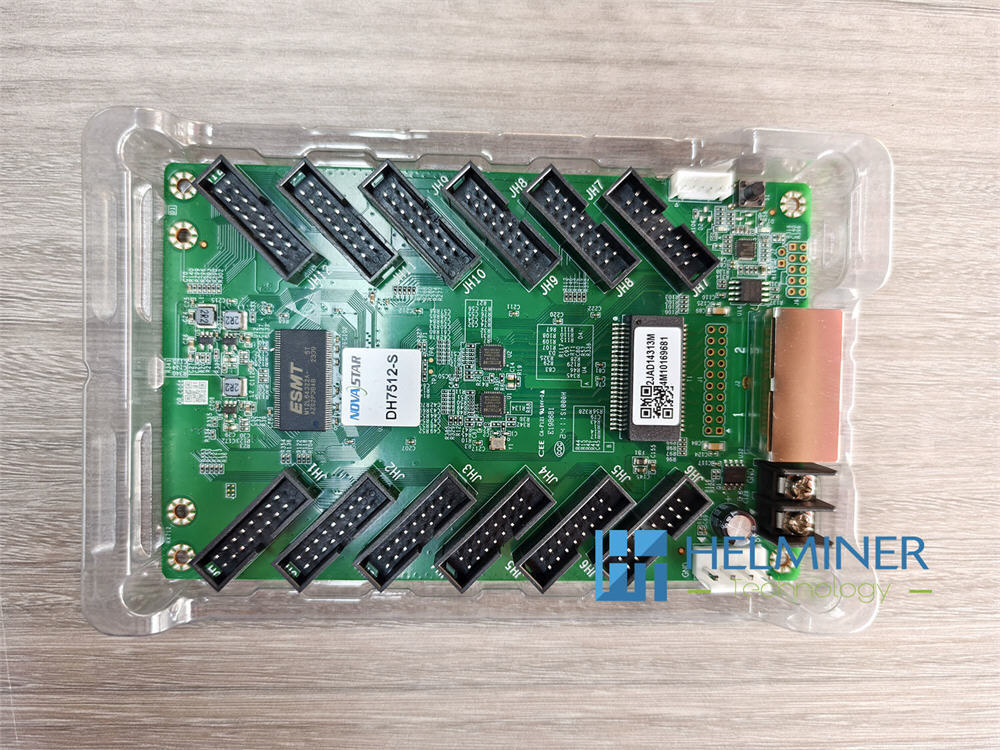

Data Receiver card
5pcs / 4pcs NOVASTAR DH7512-S

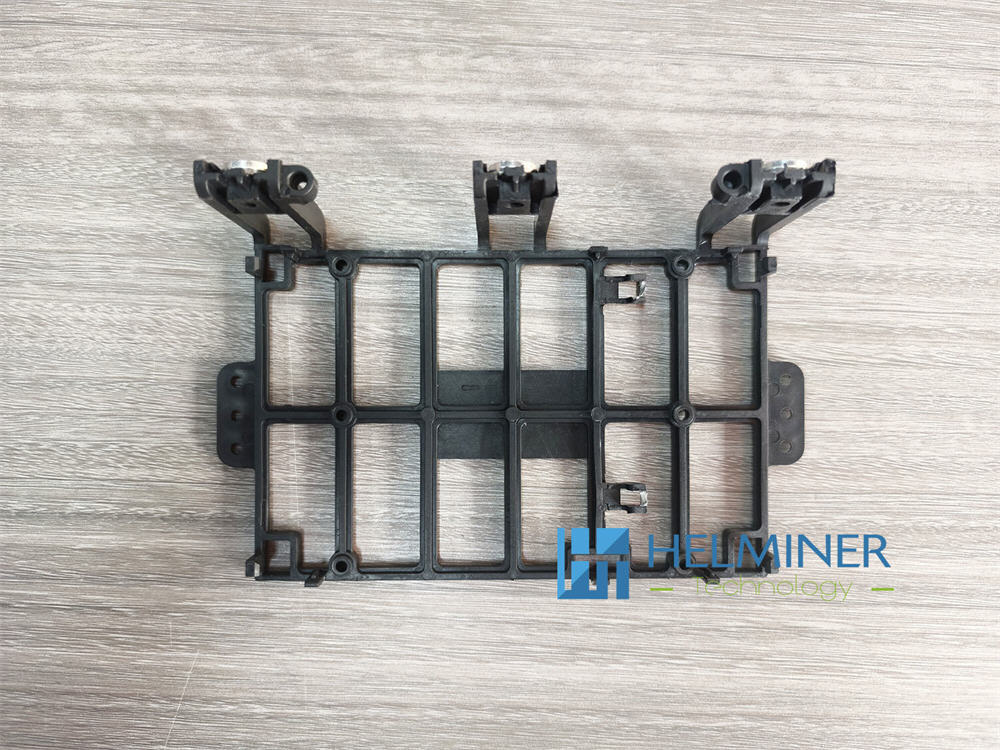

Receiver card holder
5pcs / 4pcs NOVASTAR 7512-S Reciever Card Holder

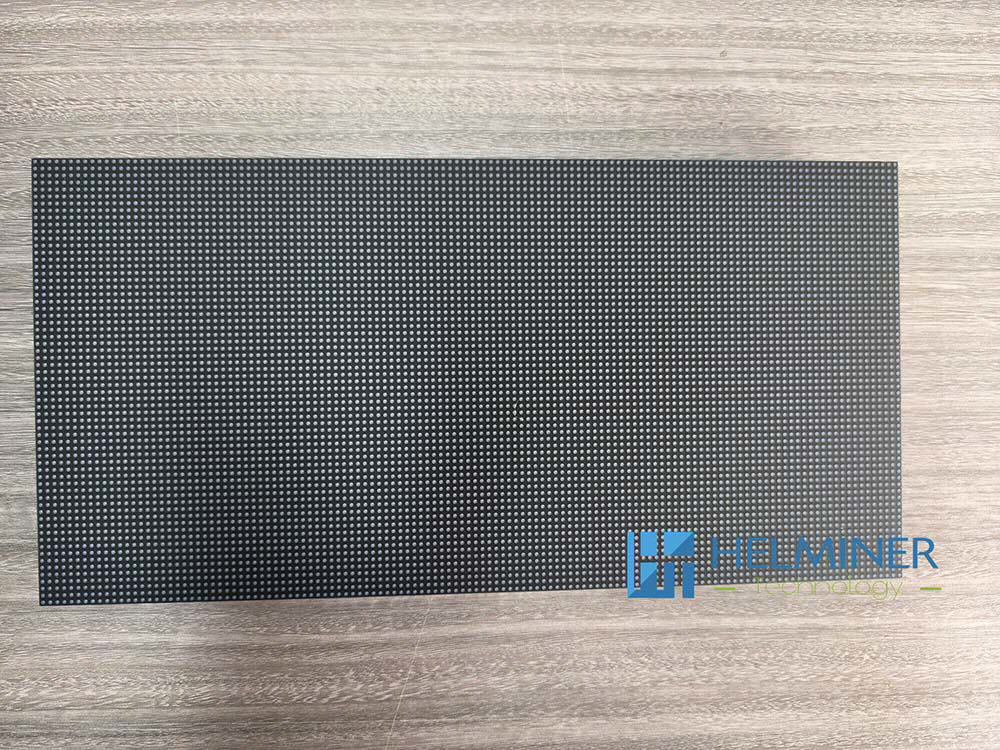

LED Module
20pcs GOB P2.5 LED MODULE

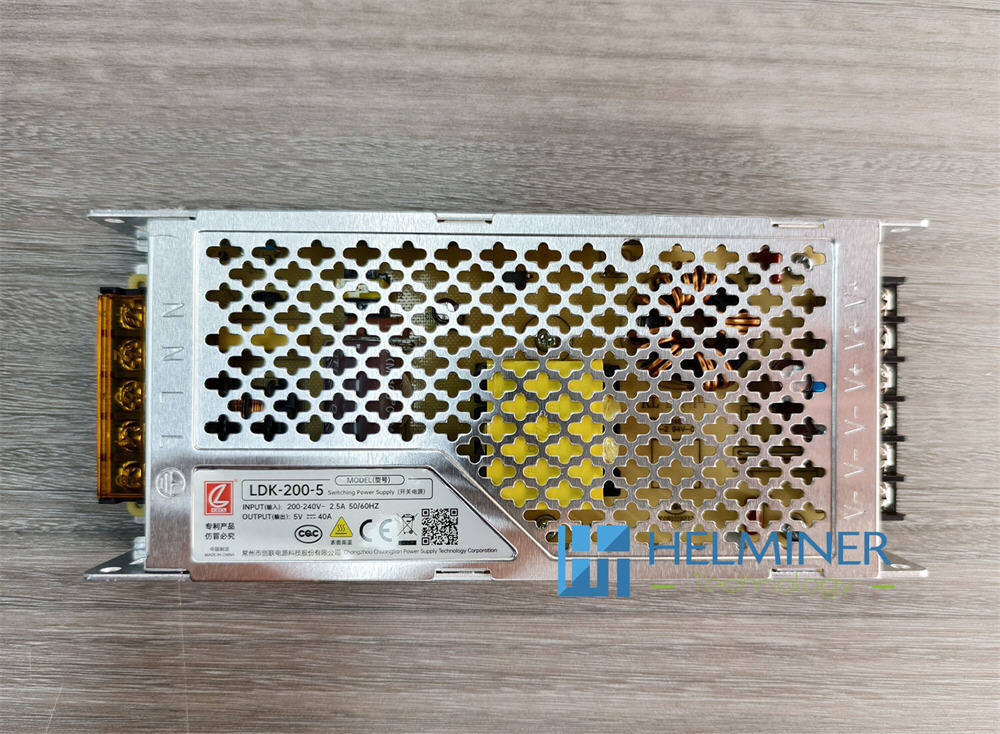

LED Wall power
6pcs 5V LED WALL power

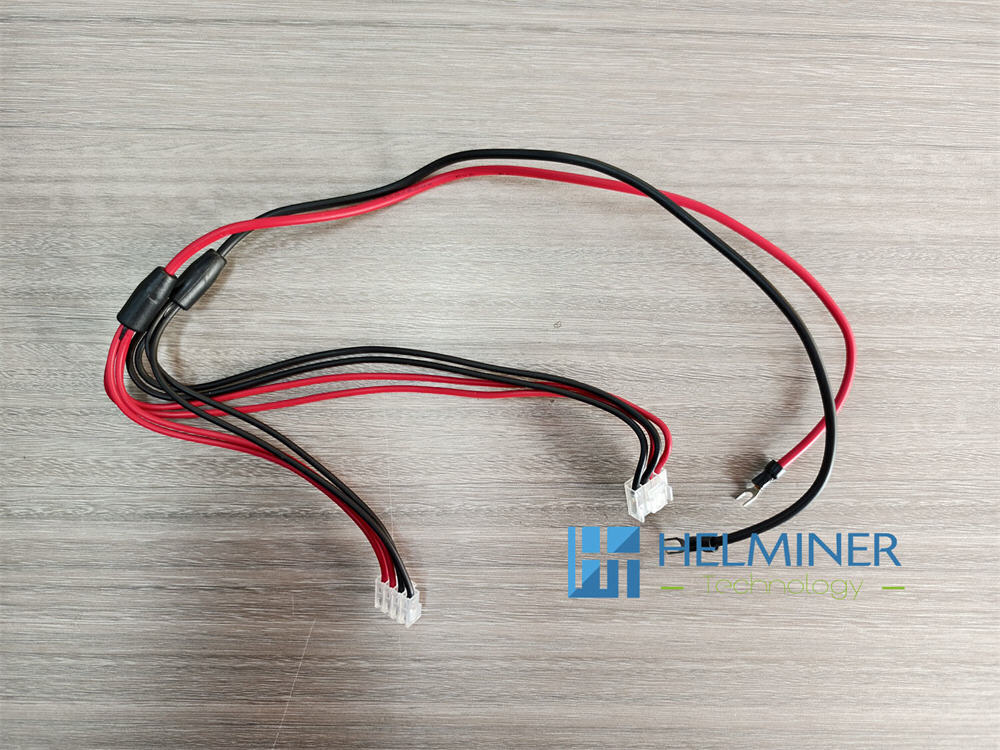

LED Module power cable
10pcs ( one pcs connect two LED module ) Power cable

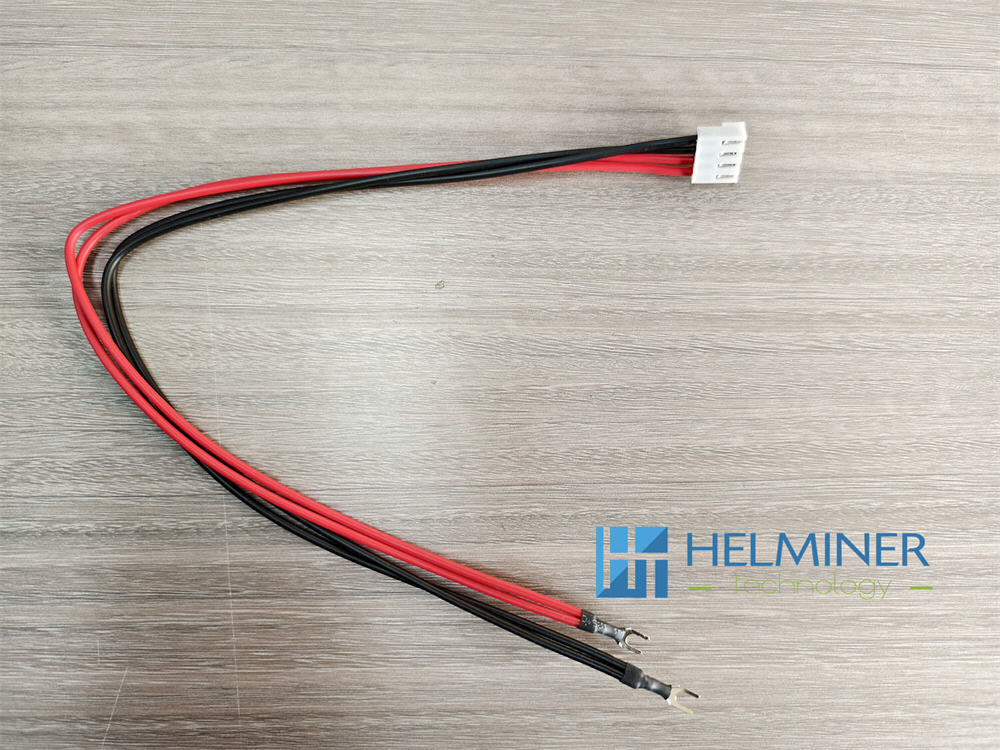

Data card power cable
5pcs /4pcs Data card power cable

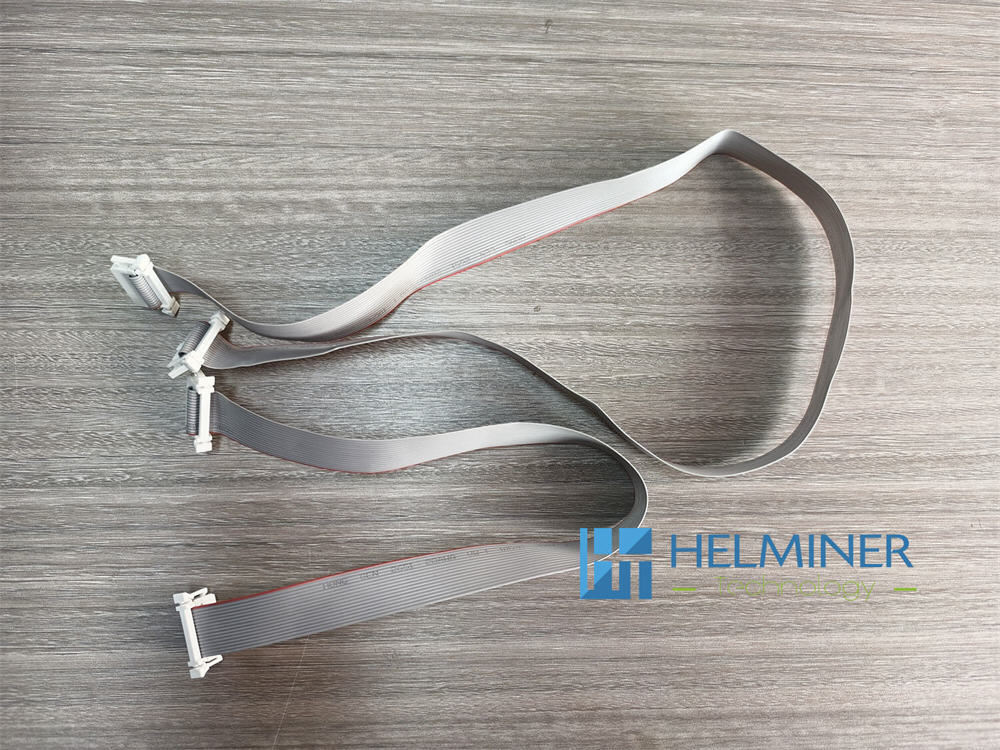

LED Module data cable
40cm 10 pcs + 70cm 10pcs 16P LED WALL Data cable

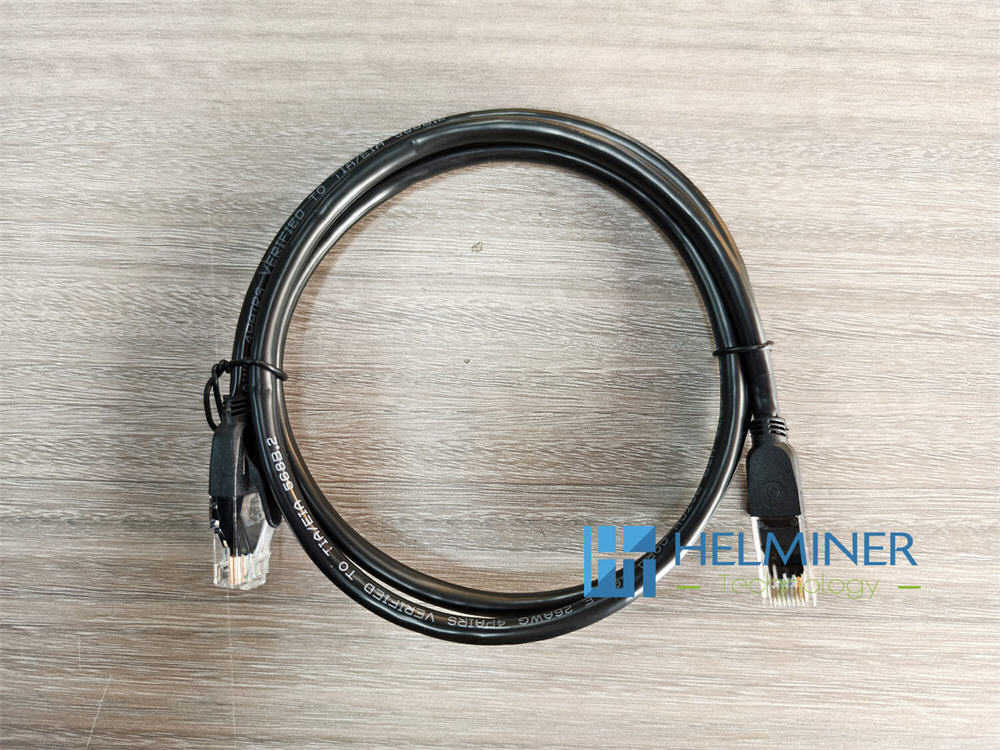

Receiver card ethenet
5pcs / 4pcs 1M LED WALL ETHENET CABLE

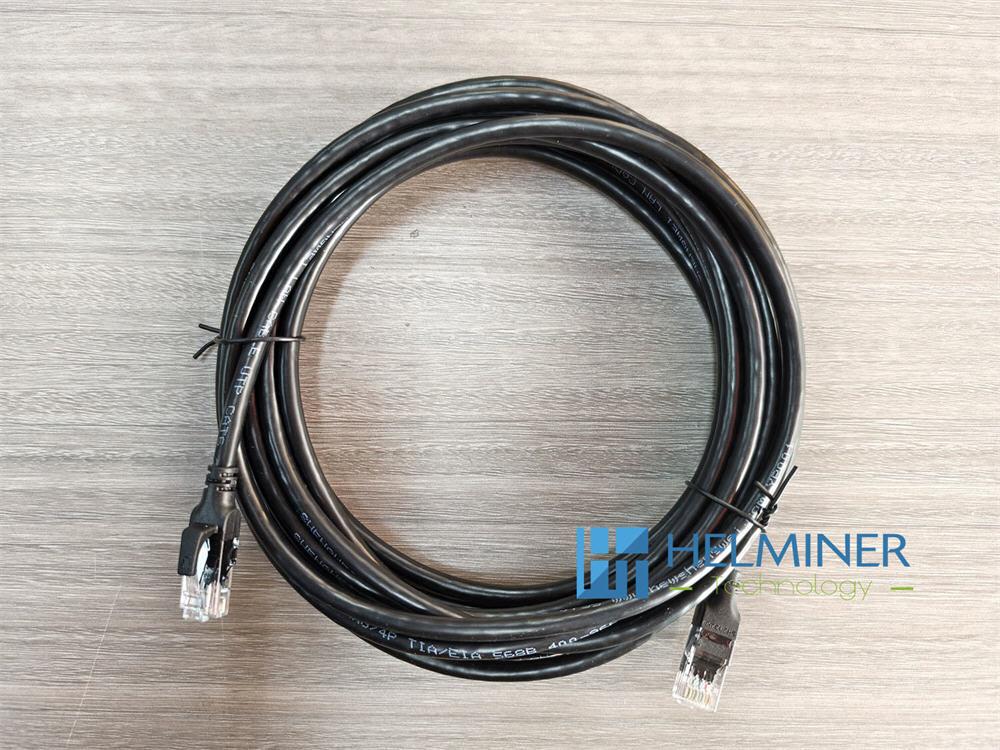

TB2 to Receiver card ethenet
1pcs 5M LED WALL ETHENET CABLE 5m

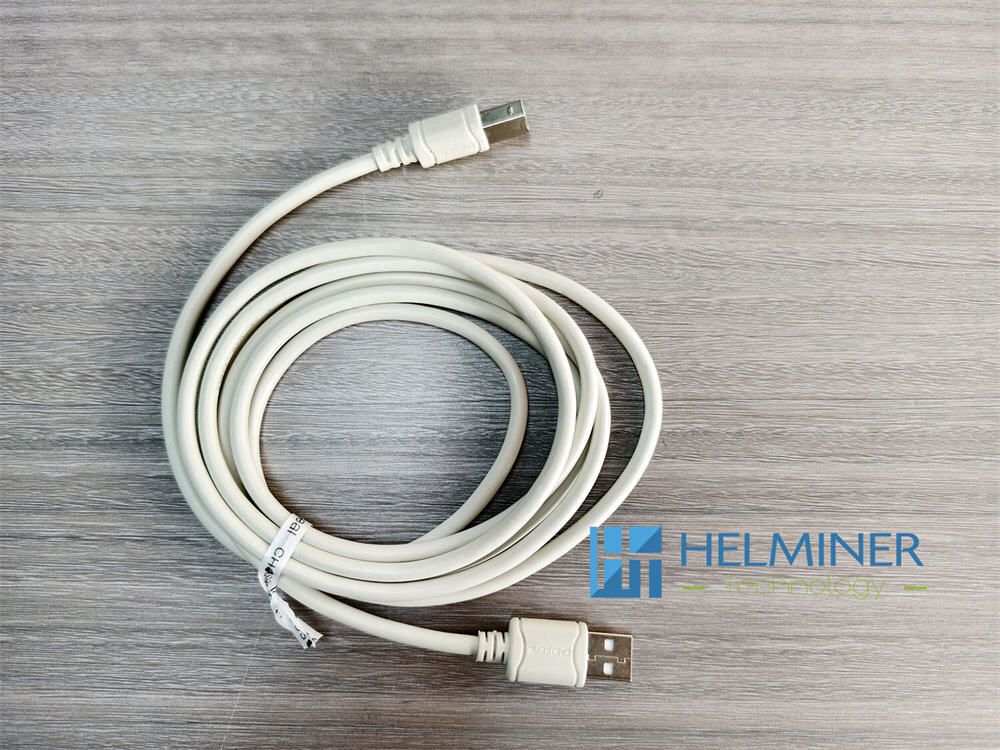

TB2 control cable
1pcs TB2 Control cable

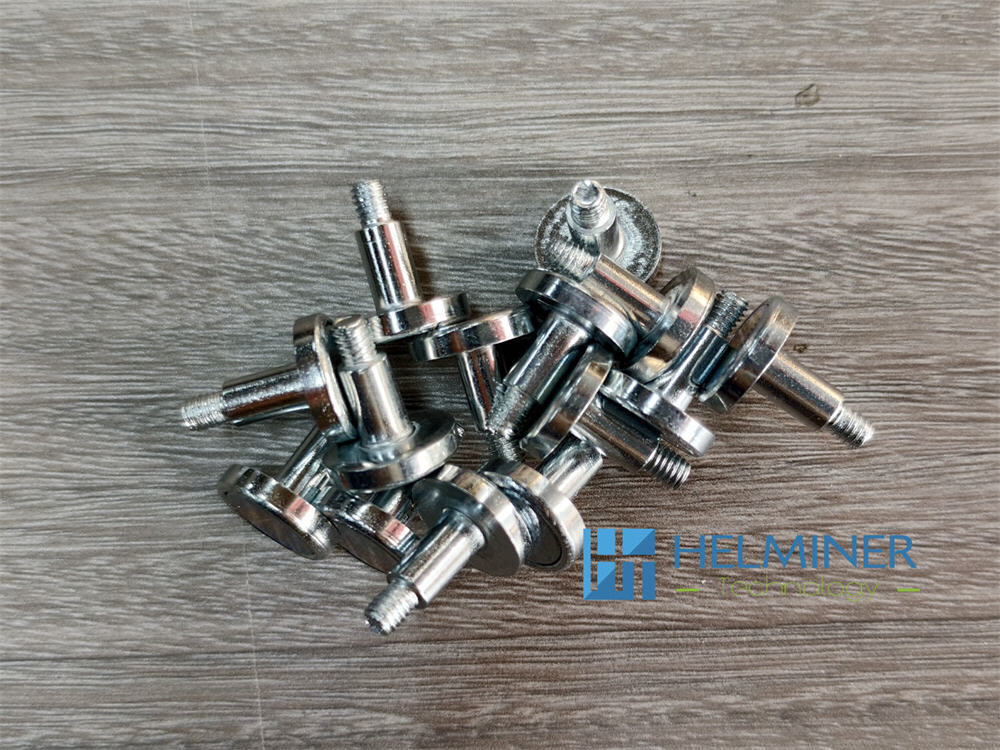

Magnet
4pcs / module LED WALL magnet

How to connect these part ?
Click here for more information
