Dimension of the new mini size 1 LED Module :
Product Benefits :
1 . Uniform and efficient illumination at high LED pitches thanks to oval optics design.
2 . Small module size would be flexible in application.
3 . Significantly better application effciency compared to systems without lenses.
4 . Long lifetime 5 years warranty.
5 . CE RoHS approval, and best factory wholesale price.
Paramenters :
| Model | LED | LED Qty | Emit Angle | Voltage | Power | Package |
|---|---|---|---|---|---|---|
| HM-E02(A) | Epistar | 1LED | 170*130° | 12V DC | 0.36 | 100pcs/group |
warranty : 5 years
waterproof :IP67
brightness : 41LM/pcs

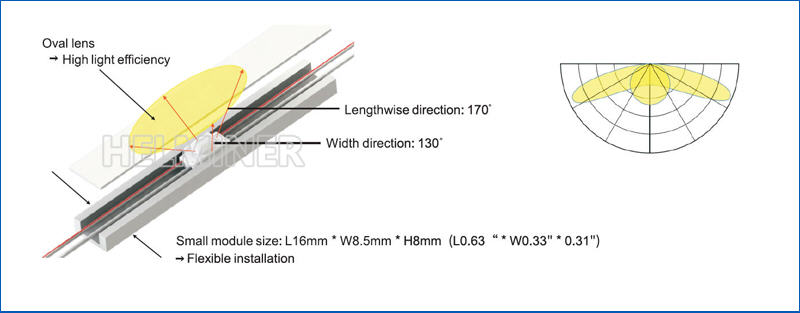

Innovation optics design ARC lens - Best lighting efficiency :

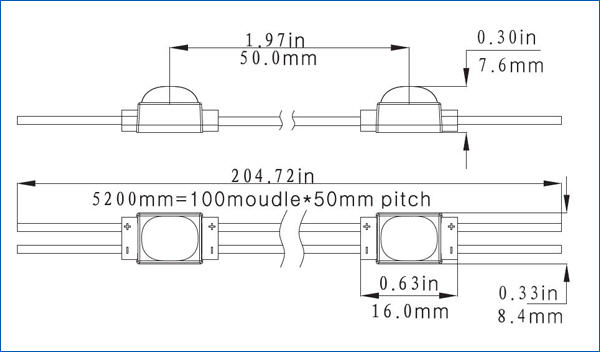

Dimension of the new mini size 1 LED Module :
Innovation Optics : 170 * 130° , best lighting efficiency

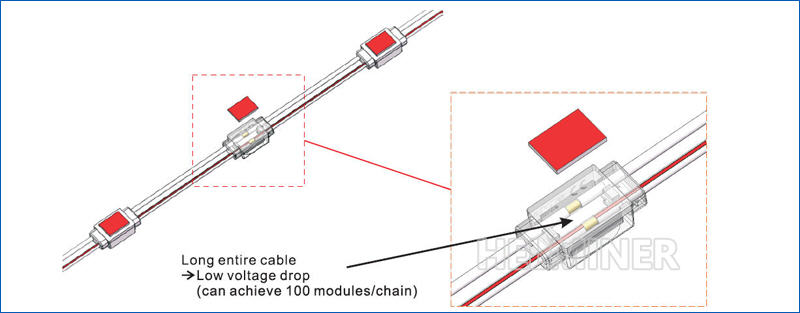

Brand New design power connection : Parallel Connection can achieve 100 modules each group : :

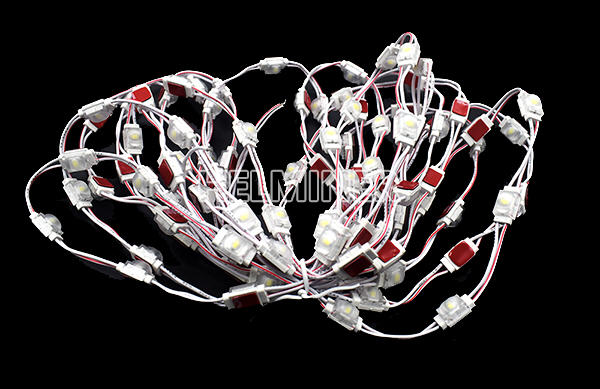

Products Img and Package information : 100pcs/group, 500pcs/bag
