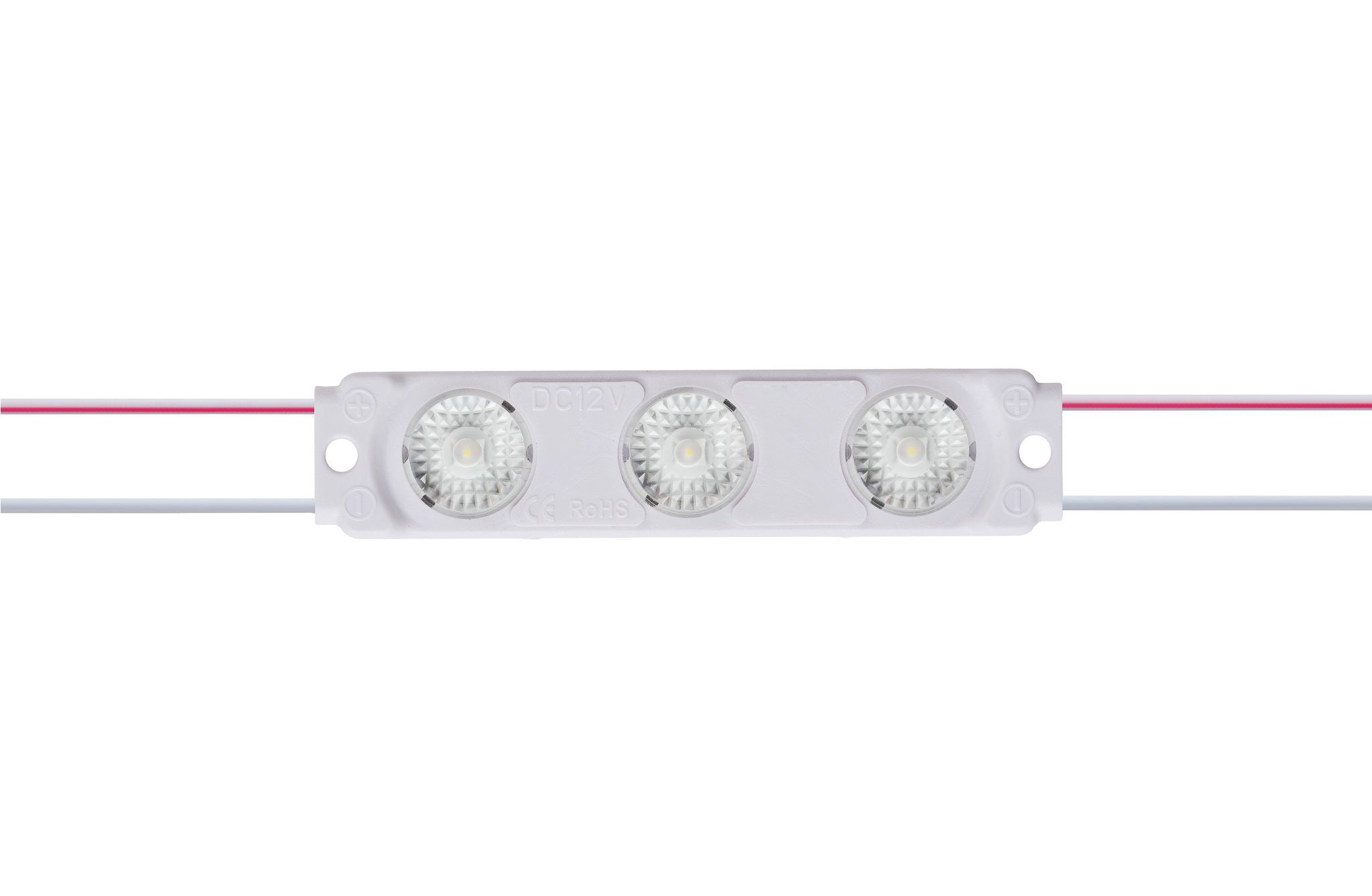

VL4 PRISM LED module 12V / 24V 1.5W, Cold White 6500K
FEATURES
- 7 Years warranty
- LED by Lumileds , 120 LM /W High efficacy
- Prism optical lens,
- Aluminum pcb design
- Low power consumption, even light, energy-saving, easy installation
- Color : 3000K / 4000K / 6500K / 7000K / Red. Green. Blue
- Email our sale manager right now : led.hgy@gmail.com
TECHNICAL INFORMATION & LIGHT DISTRIBUTION GRAPH
| LED Type | Lumileds 2835 |
|---|---|
| Input | 12V DC, 24V DC |
| Power | 1.5W |
| Light output | 120 LM /W |
| Beam angle | PRISM 175° |
| Available colors | Red , Green , Blue , White |
| Dimensions | 78*17.5*7mm |
| Price | US $0.27 |
| LED.HGY@gmail.com |
Light distribution graph
Prism LED modules for backlighting and light advertising
This modules are designed to illuminate channel letters and single-sided lightboxes with depths ranging from 100 to 200 mm. Powered by Philips Lumileds LEDs, they show extreme endurance at harsh working conditions (IP67) and have a 7-year warranty with L70 for 80,000 hours.
signage led illumination , 12v 24v Prism led modules manufacturer from China
Designed for the illumination of built-up letters and light boxes,Simialr SloanLED's Prism LED modules are recommended for use in applications with an optimal depth range between 100mm to 200mm.
With a power consumption of just 1.5W per module,
Helminer Prism lens LED Module is available in 3000K, 4000K, 5000K, 6500K and 7000K.
Prism Colours are available in red, orange, green and blue and are highly energy efficient to run, consuming 0.72W per module and 160 lm /w
12V 24V DC, 175° wide angle Prism led module , Designed for the illumination of built-up letters and light boxes
