Product introduction

There have three option now

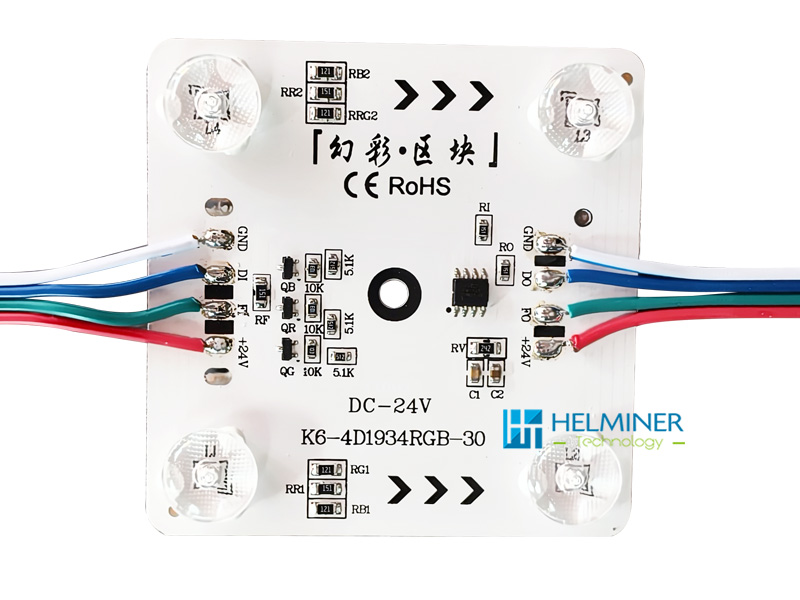

1935 Deluxe Series

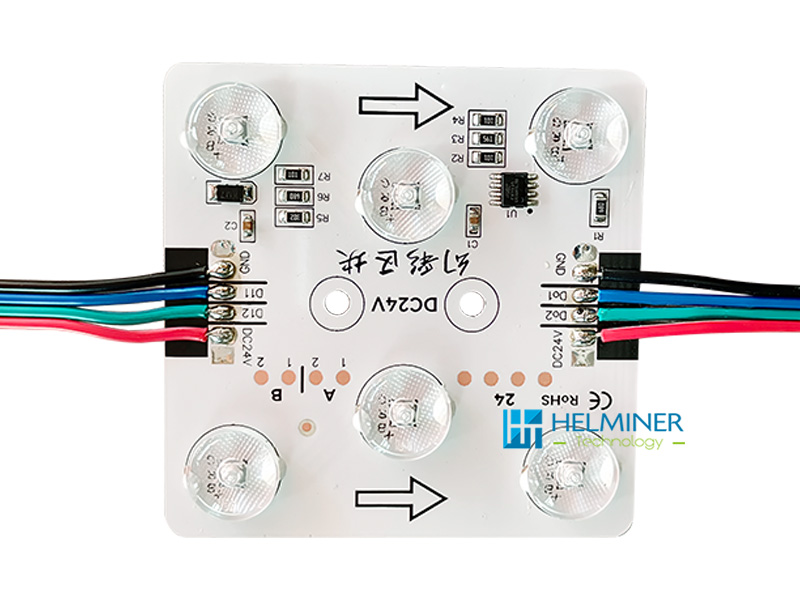

1935 Regular Series

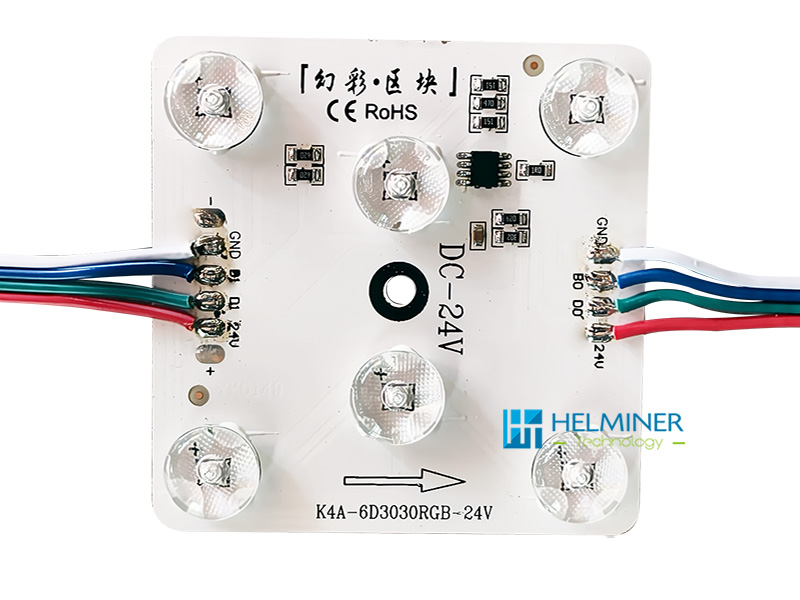

16703 Regular Series

Signal line description
Breakpoint resume IC, backup signal line/main signal line

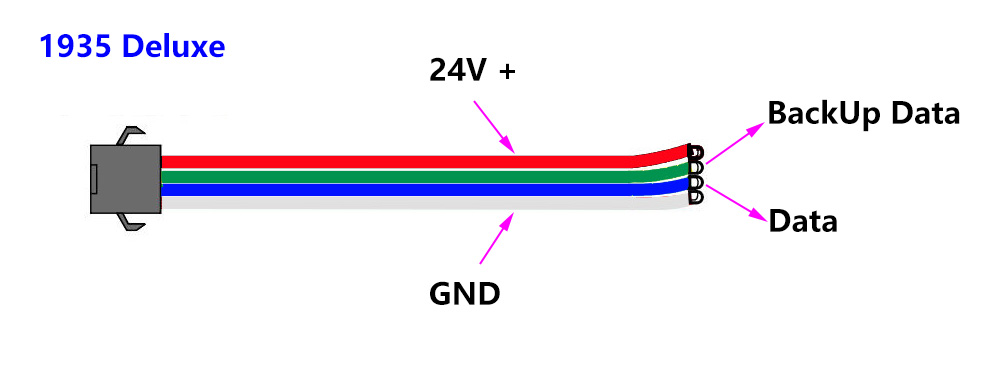

1935 Deluxe series , Data / BackupData connect to the Data together.
GND connect the controller GND ,
24V DC + No connection required, waterproof treatment is required

1935 Regular series , Data / BackupData connect to the Data together.
GND connect the controller GND ,
24V DC + No connection required, waterproof treatment is required

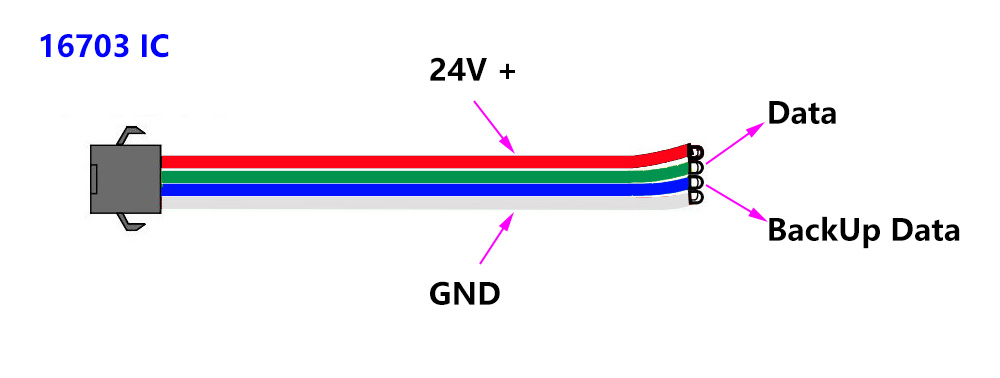

16703 Regular series , Data connect to the Data , Backup Data connect to the Controller GND
GND connect the controller GND ,
24V DC + No connection required, waterproof treatment is required

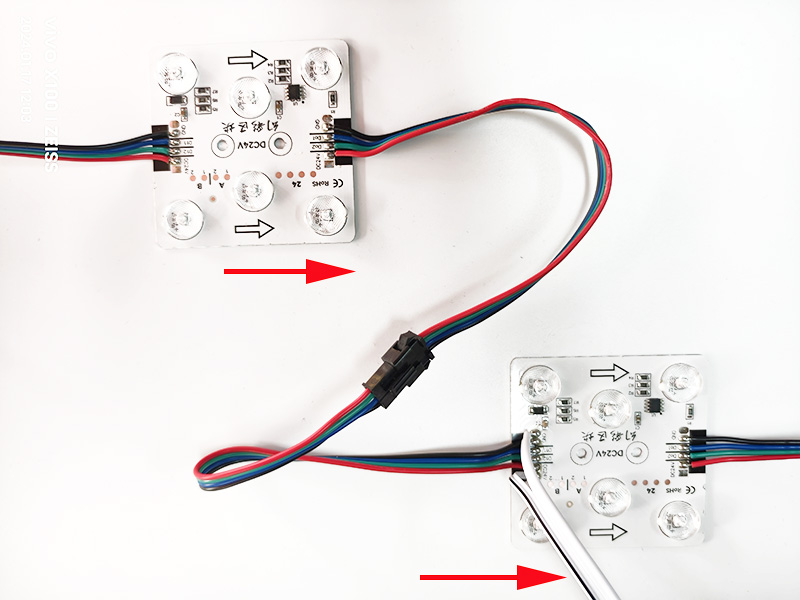

Signal Connection

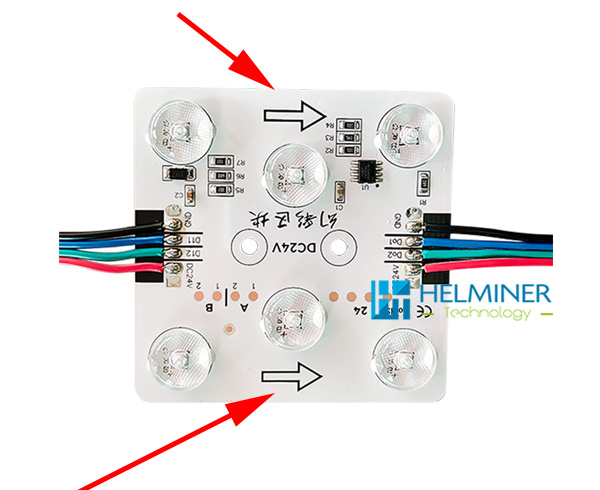

The input signal must be consistent with the arrow indication.

  1. All PCB boards have arrow marks
  2. The signal is in the same direction as the arrow,
  3. Arrow left in and right out

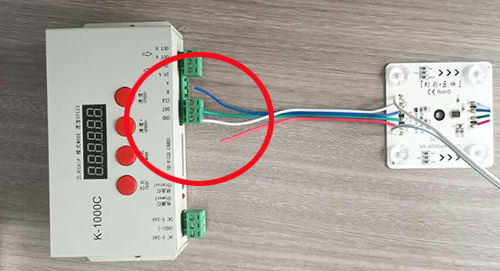

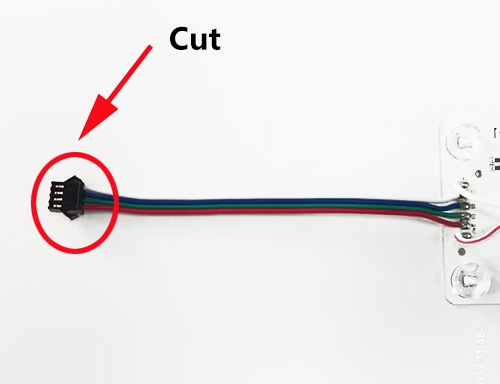

For the connection between the signal line and the controller, in order to ensure good signal transmission, please cut off the head connector and connect directly.

If you need to lengthen the signal line, make sure the interface is well connected. (Note: The signal line will be lengthened when the first LED is far away from the controller)

There are 20 products in each group, and the output signal line of the 20th product is connected to the input signal line of the first product in the next group.

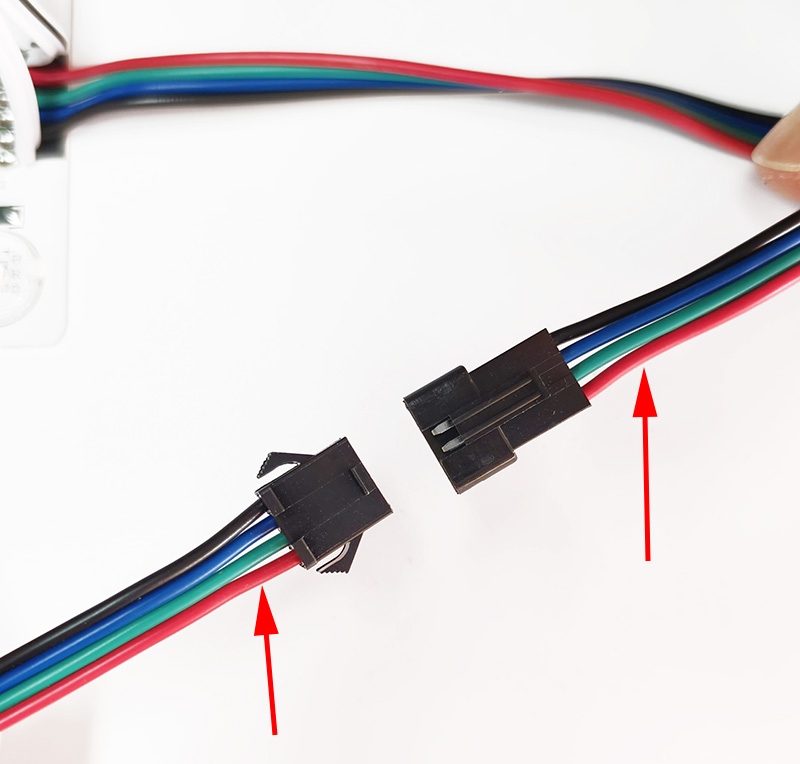

  1. When connecting each set of signals, please pay attention to the consistent colors.
  2. The male and female plugs can only be inserted if they are oriented correctly.

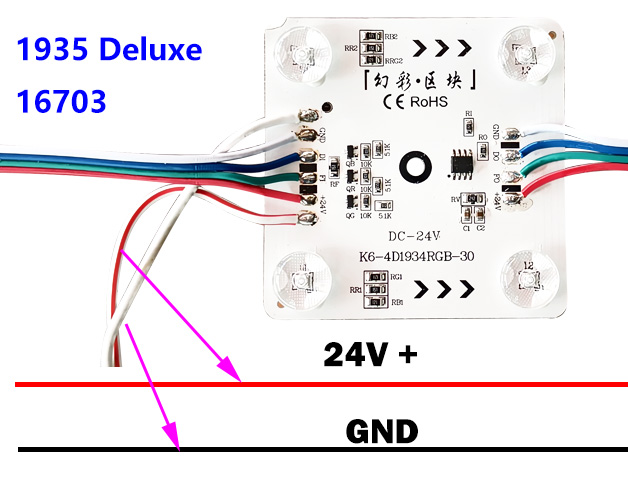

Power Connection
Every 20 groups, there is a separate power wiring on the first LED (Signal input terminal)

  1. Working Voltage 24V DC
  2. Please connect the power wires to the 24V DC power according to the color instructions

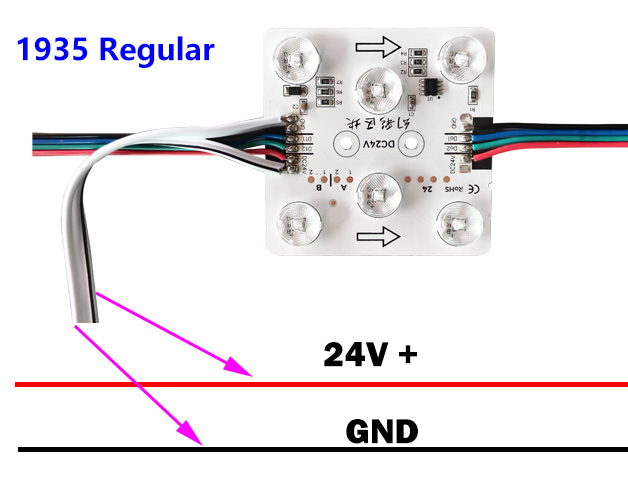

  3. 1935 Regular , Gray Wires 24V + , White Wires GND
  4. 1935 Deluxe, 16703 Regular : Red Wires 24V + , White Wires GND
