LED MODULE INSTALLATION GUIDE

LED Module Installation Guide

      Tool required: wire strippers, drilland screw driver and screws

• 1. Noting metal Box depth, width and face material, choose the suitable spacing and quantity of led module, Carefully choose the acrylic panel, the light-diffusion and permeating of which has great effect on brightness and uniform of the light from boxes.
• 2. Clean and remove all debris inside the channel letters.
• 3. Using LED placement from Step 1, remove tapes on the backside and stick LED Module into place.

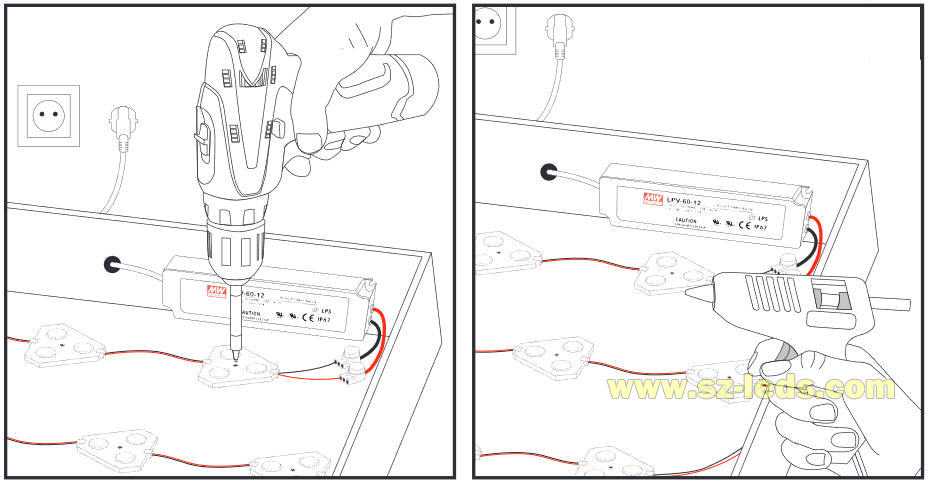

• 4. For firm fixing, use screws to secure the led module within the channel letter.
• 5. Drill the holes at the bottom or side of the letters for the wire connection to the DC power supply wire access.

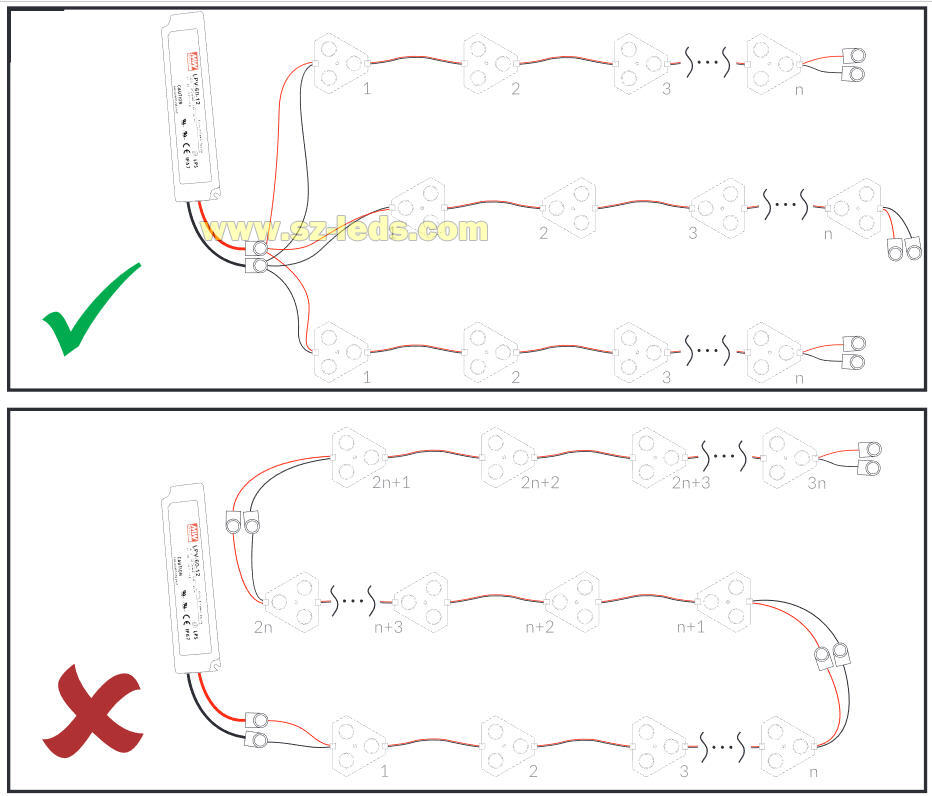

• 6. LED Modules may be connected in series or parallel with connectors. Cap all usused wires. The strand of module should not be loop to creat a closed circuit.Il partner perfetto per la tua comunicazione luminosa
• 7. Run a wire from the Power supply to each channel letter and connect to the first LED module on the strip. Must be used with 12V Power supplies. Luminosità elevata e diffusa
• 8. Connect the Red wire(+) of the LED Module to the Red wire (+) of the LED Power supply. Connect the black wire(-) of the led module to the black wire (-) of the power supply.
• Illuminazione di lettere scatolate e cassonetti - Helminer LED Technology

NOTE: The adhesive tape is forauxiliary assembly only.

1-5515 Moduli LED per bifacciali (serie stabilizzata)

Fasten the modules and the wirespermanenty by screwing, riveting orthe special glue

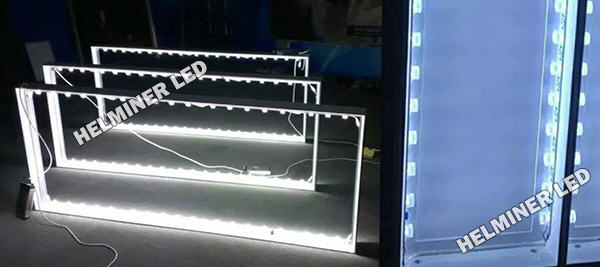

• Barre LED per insegne bifacciali | HS-E07(HB35LA)
• Barre LED per insegne monofacciali , HB30A | HS-C08
• Miss Emma : Helminer@hgytec.com

HS-E07 (HB35LA)

HS-C08/N (HB30A)

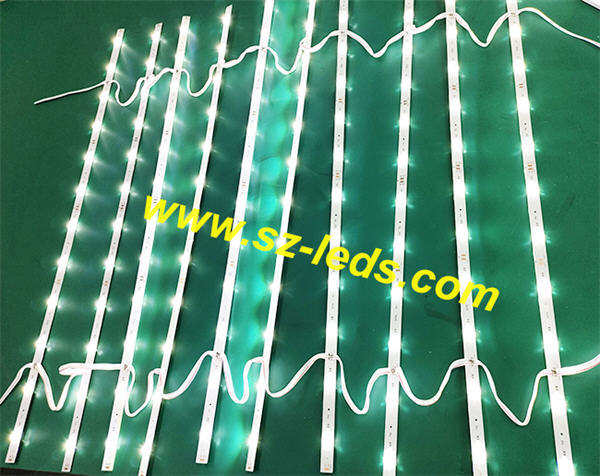

Linea di Barre a LED adatte per la retroilluminazione di insegne luminose a basso spessore, con telo tensionato o plexiglass opale. Ottiche con prismi per una perfetta diffusione luminosa.
