LED Module, LED Strip, LED Backlight

12V DC 3 LED IP67 Edge-lit Side LED Modules For Light Box and Signs Lighting

Product Benefits :
1 . Uniform and efficient illumination at high LED pitches thanks to oval optics design.
2 . Excellent optical design can meet long light box uniformity requirement - best for thin and small light box.
3 . Significantly better application effciency compared to systems without lenses.
4 . Long lifetime 6 years warranty.
5 . CE RoHS approval, and best factory wholesale price.

12V DC Edge Side LED Modules For Small Thin Light Box

 1.32w side led modules, led modules for light box, edge led modules, led for thin light box

Paramenters :

Model LED LED Qty Emit Angle Voltage Power Package
HM-D01/C Lumileds 3LED 11*40° 12V DC 1.32 40pcs/group
warranty : 6 years
waterproof :IP67
brightness : 140LM/pcs

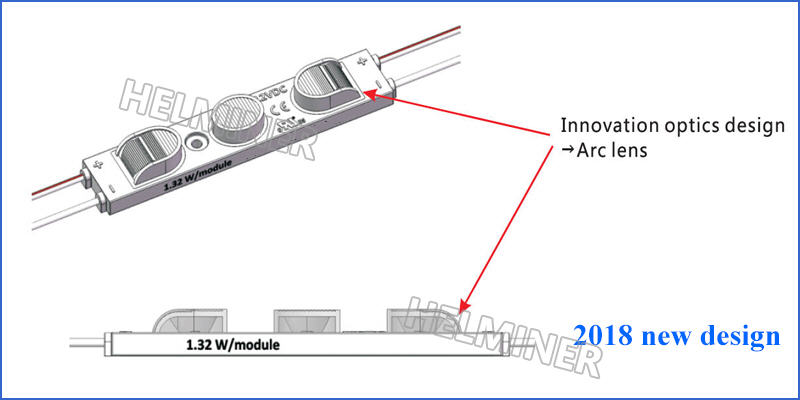

Innovation optics design ARC lens - 11*40° Best lighting efficiency : For Small Thin Light Box Side Lighting

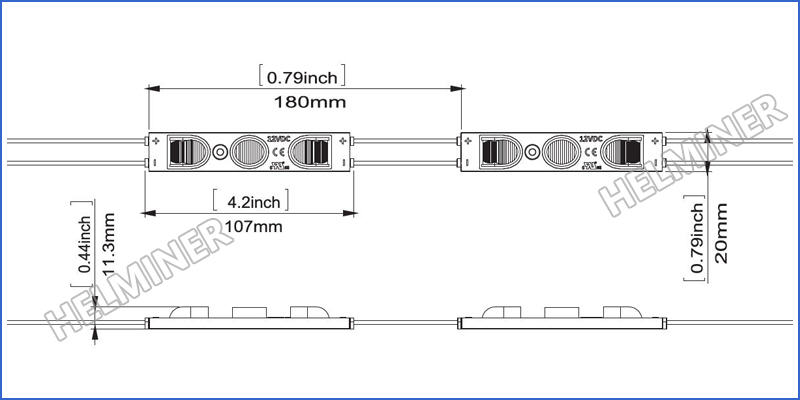

Dimension of the 1.32W high power injection side-lit led modules :

 led signage modules, box side lighting leds

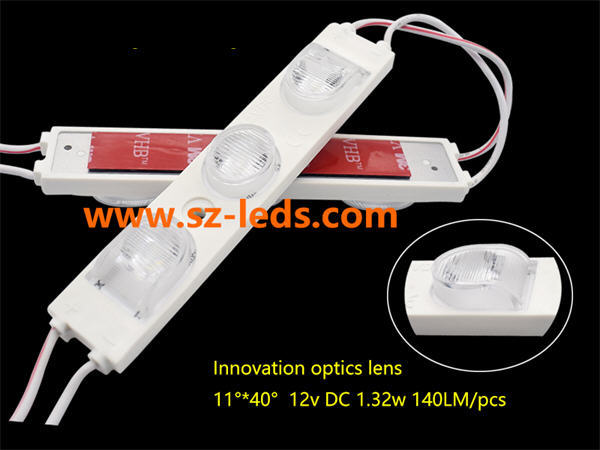

Brand new Innovation Optics : 11*40° , best lighting efficiency :

 12v led modules, arc lens led modules, light box leds

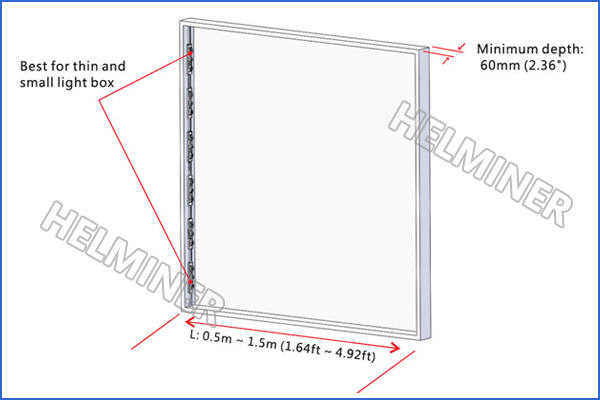

Best for thin and small light box side lighting :

 led signs modules, china led signs lights supplier

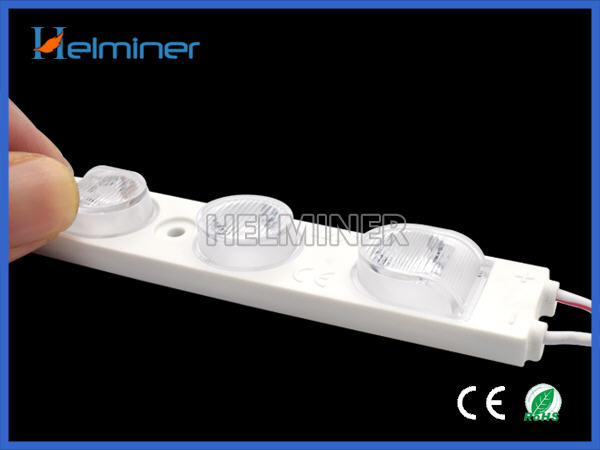

Products Img :

arc lens led module, 12v dc led module, led modules for lighting box
