0.36w 1 LED Mini 2835 LED Modules
Specification
| Model | HM-A01/C |
| Voltage | 12v DC |
| Power | 0.36w/pcs |
| Brightness | 40LM/pcs |
| View Angle | 160° |
| Color | 6500K White color ( OEM Yes 3000K/4000K ) |
| Certification | CE RoHS |
| Waterproof | IP67 ABS Fire-proof material |
| OEM | Yes . MOQ 1 Box 5000pcs |
| Warranty | 5 Years warranty. CE RoHs approval |

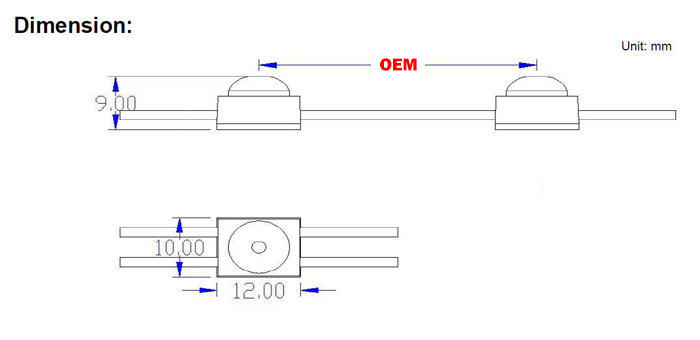

Normal distance between 2LED module is 33mm ± 2mm

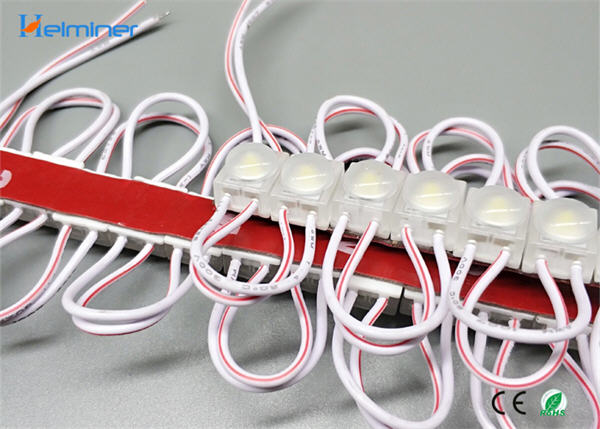

Product real shot chart :
40pcs/group. each LED can be cut. 3M backt-tape easy to install.n

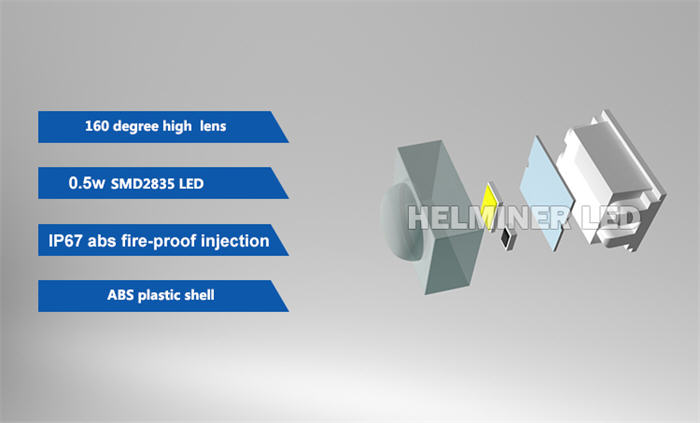

Updating : ABS fire-proof material , Fire rating to UL94V-0

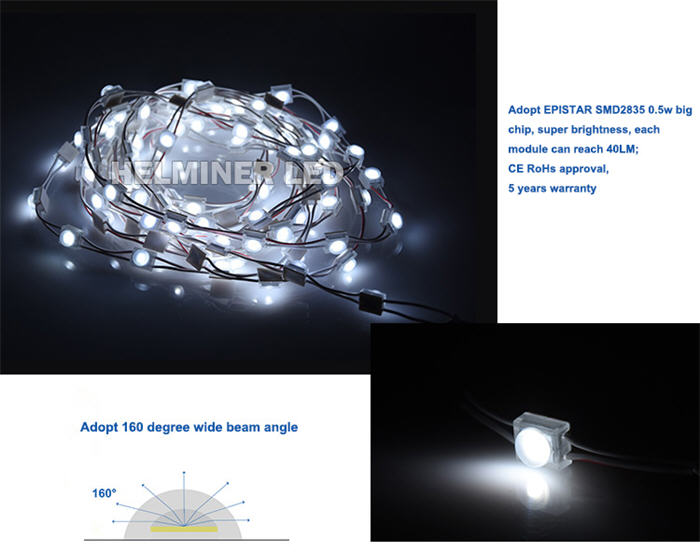

Adopt Epistar SMD2835 0.5w Big chip, Each LED module can reach 40LM/pcs,
Super brightness,
Long life time, 160° lens, 5 Years warranty, Best Factory wholesale price.
Features :
1. Adopted SMD2835, high lumen LED, 35-40 LM/led
2. ABS injection, viewing angle 160°.
3. Fire rating to UL94V-0.
4. Constant voltage technology, stable performance.
5. High light efficient, long life span 50,000 hours.
6. IP67 waterproof for outdoor use.

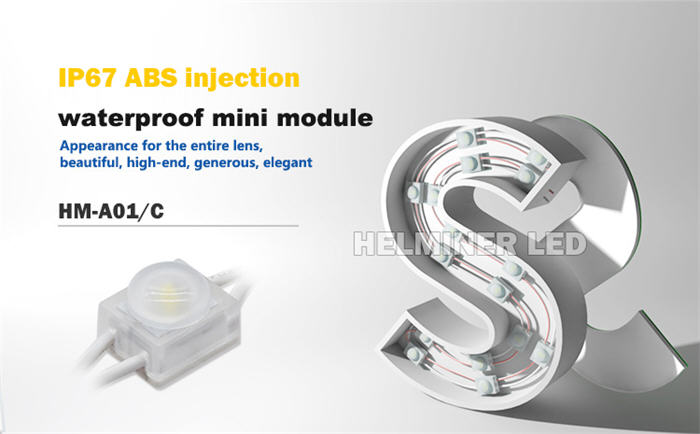

New design mini small led module with lens, Suitable for 3-8cm depth small mini shop sign !
High Quality DC 12V Injection Module : 2835 1 LED Module 0.36W IP67 Waterproof LED for Mini Small Advertising Signs
HM-E02/C
High light efficiency series LED module. 3LED 0.72w 85LM/pcs

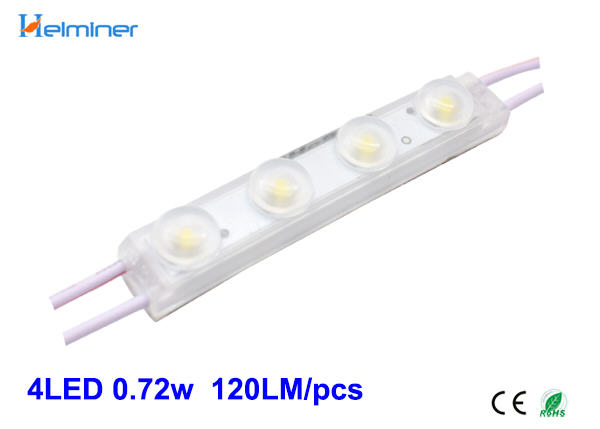

HM-E02/D
High light efficiency series LED module. 4LED 0.72w 120LM/pcs
