1LED/2LED/3LED/4LED Module For Signs
|Model||HM-C02( Power by OSRAM )|
|Option-A||1LED 0.5w 45LM/pcs|
|Option-B||2LED 1w 95LM/pcs|
|Option-C||3LED 1.5w 145LM/pcs|
|Option-D||4LED 2w 195LM/pcs|
|View Angle||170° PMMA Lens|
|Color||6500K White | OEM Yes|
|Waterproof||IP67 Korean LG ABS Fire-proof material|
|Warranty||6 Years warranty. MOQ 5000pcs|

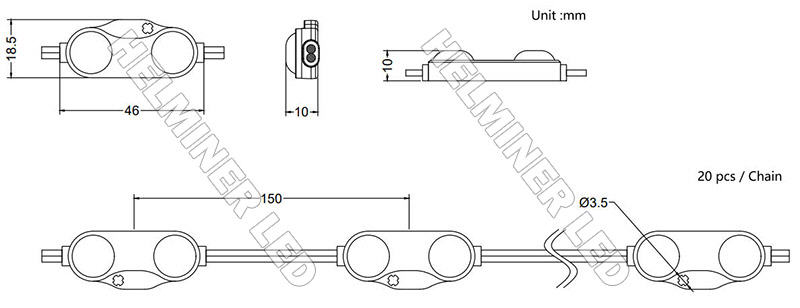

2 LED Injection LED Module:

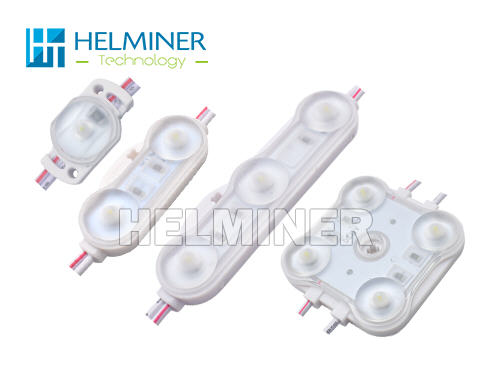

Injection LED Module : 1LED / 2LED / 3LED / 4LED

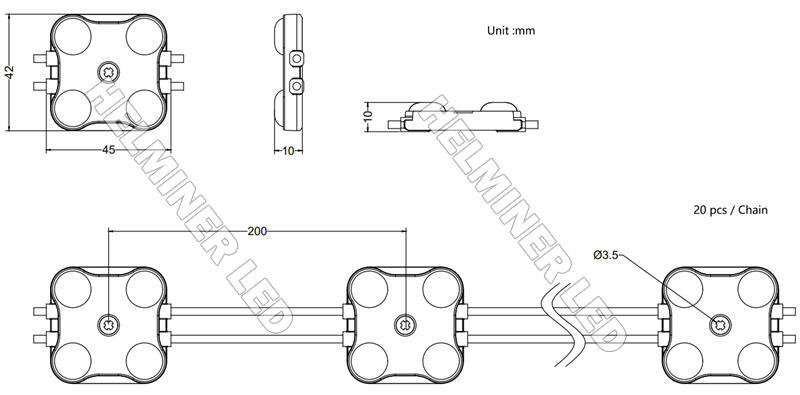

4 LED Injection LED Module :

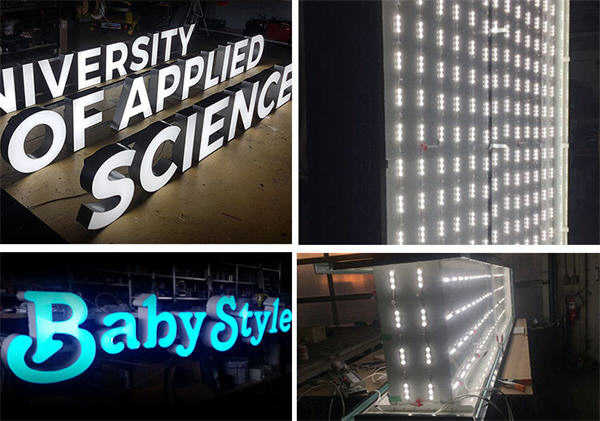

LED modules are perfect for sign illumination and light-box construction, they are IP67 rated so can be used outdoors. These Quad modules are supplied on a 3.5m string of 20 units, each module is 1.44w; The modules are joined with a two core cable and can be cut to size.
1. Adopted OSRAM / Epistar SMD 2835 Big chip, high lumen LED, low light decay
2. IP67 Korean LG ABS injection , Fire-proof material , Fire rating to UL94V-0.
3. 170° PMMA lens, big emitting angle.
4. Constant voltage technology, stable performance.
5. High light efficient, long life span 50,000 hours. 6 Years warranty
LED injection Module with lens, LED module for signs, LED backlit module, mini LED Module, LED signage module !
Adopts high brightness LED as a light source, no light spot, low decay and good consistency. It has injection outer cover, beautiful and unique appearance, protection rate IP67 and is easy to install.
