HOME  >  LEDs For Light Box  >  2.4W Sidelight LED Module
  led sign lighting, 2.4w edge side led module,  led modules for signs, 12v led backlight for signs
Parameters

2.4W Edge module led : CE RoHS approval, Epistar chips with top quality

Model LED Type LED Qty Emit Angle Color Voltage Power
(pcs)
Dimension
(mm)
Package
HM-D01(B) SMD3030 1LED 45*18° White DC12V 2.4w 37.5*29.5*13.7 20pcs
warranty : 5 years
waterproof :IP67 abs injection
brightness : 200LM/pcs
Features

Epistar 3030 big chips , super brightness , low light decay , long life time .

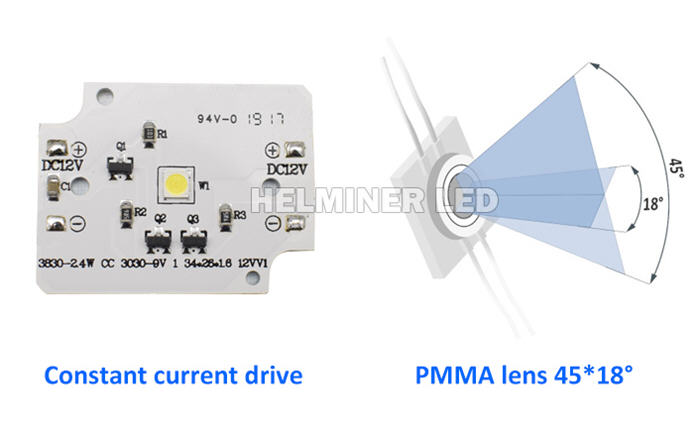

Aluminum pcb , best heat dissipation for the chips .
Constant current drive design , make sure the best lighting consistency .

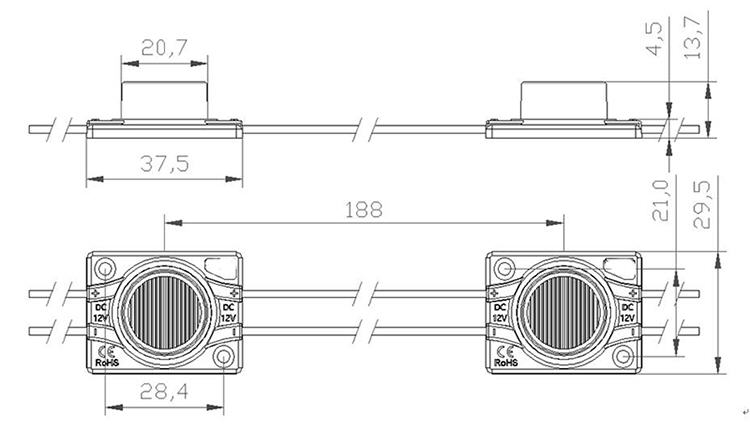

Dimension : 2.4W Edge module led

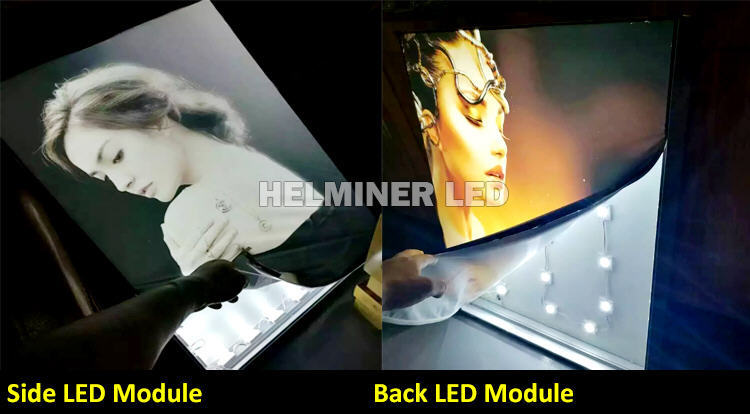

 2.4w edge led module, modules led, led for double light box

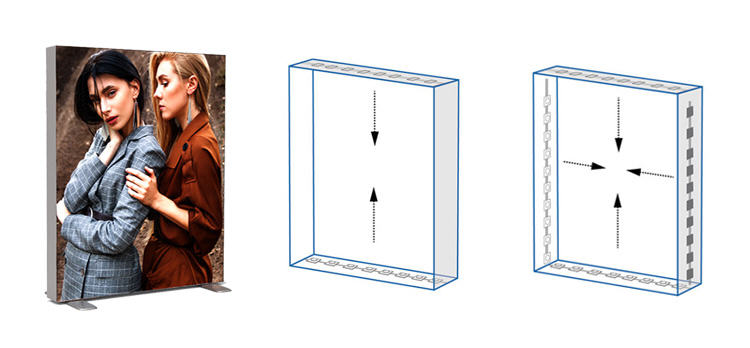

45*18° emitting angle, special design edge moduli led , side lighting for the double face light box .
20pcs/group , each led can but cut , easy to install , long life time , more save power , ce rohs approved .

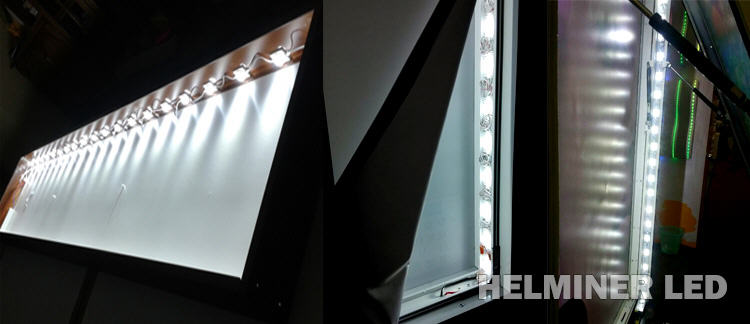

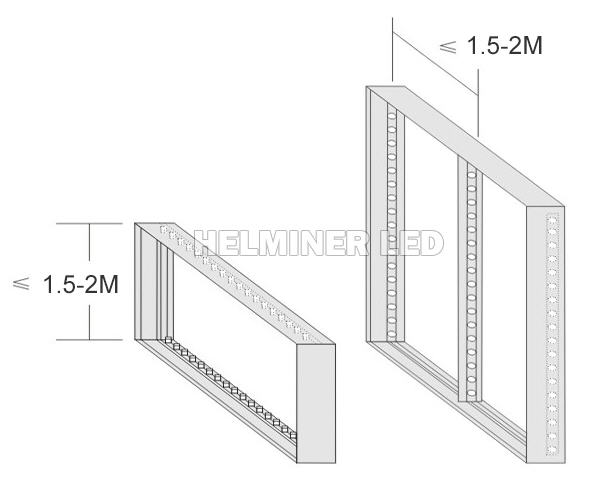

Installation : 2.4W Edge module led

 led sign lighting, led signage lighting, china modules led supplier

Products Img : small size , super brightness :

 edge led module, edge module led, edge led
